Ebusco
3.0

  • 700 KM RANGE
  • Max. 140 PAX

The Ebusco 3.0 designed to be a gamechanger in the electric bus industry

Not constrained by a past reliant on fossil fuel, Ebusco has a ground-breaking and unique approach to developing electric buses. A multifunctional team of key experts, who have earned their spurs in the field of aerospace, automotive and electronics, has developed an innovative fully electric bus which goes beyond all existing boundaries to redefine the world of public transportation: Ebusco 3.0.

Ebusco’s new bus breaks the barriers of current bus design in our drive for sustainable public transport. Not only by using composite materials in the main structure of the body, but also in its approach to focus the design around passenger comfort, driver support and Total Cost of Ownership. Last but not least, it contributes to make the world we live in a safer and healthier place.

Download brochure
Download brochure

Why Ebusco 3.0

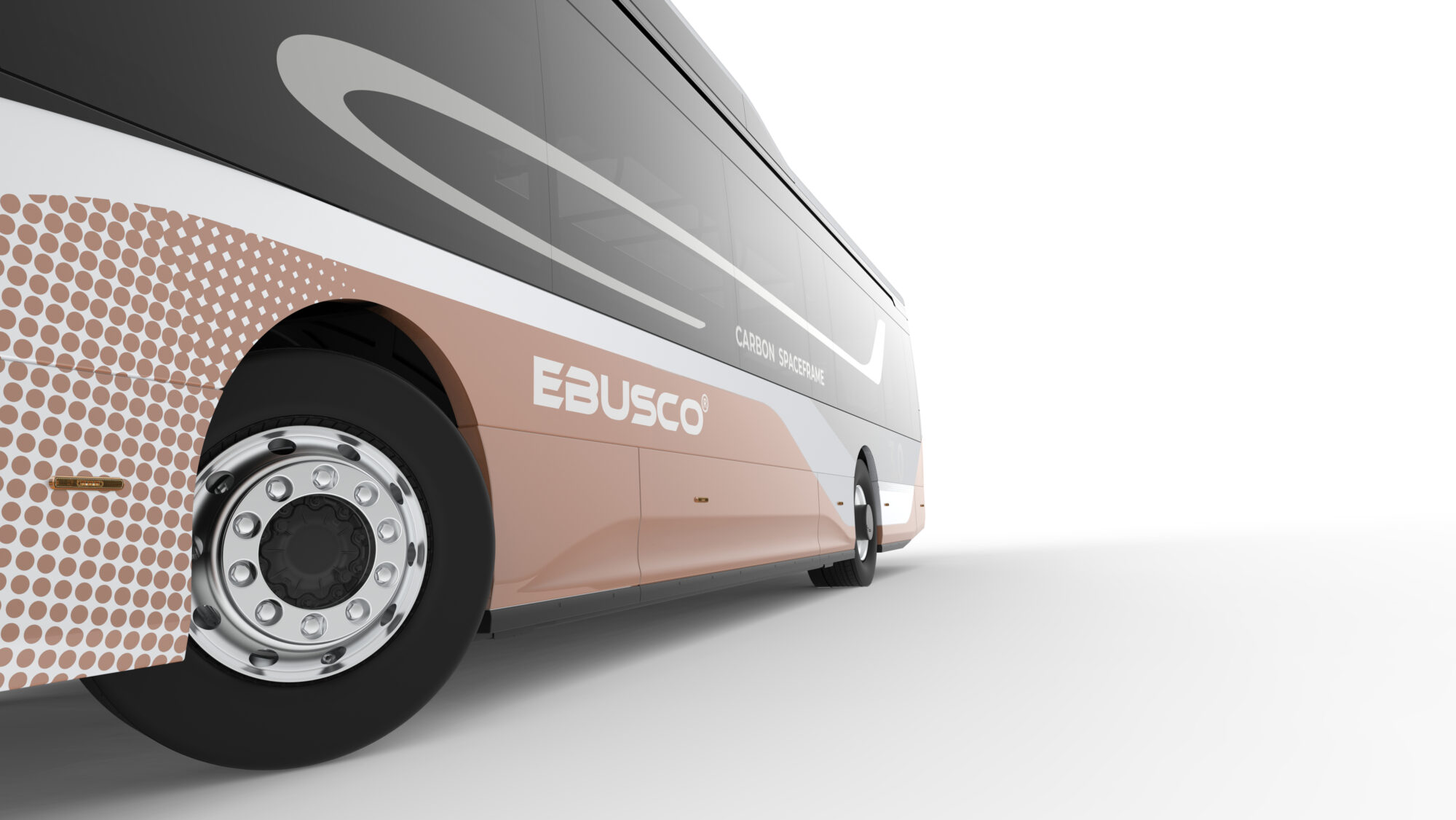

  • Composite bus; substantially lighter (27% | 9.950 kg)
  • Extends the operational life span of the bus up to 25 years
  • Revolutionary design with a fully flat floor
  • Floor-mounted batteries free up roof space for customizations like solar panels
  • Reduced Total Cost of Ownership

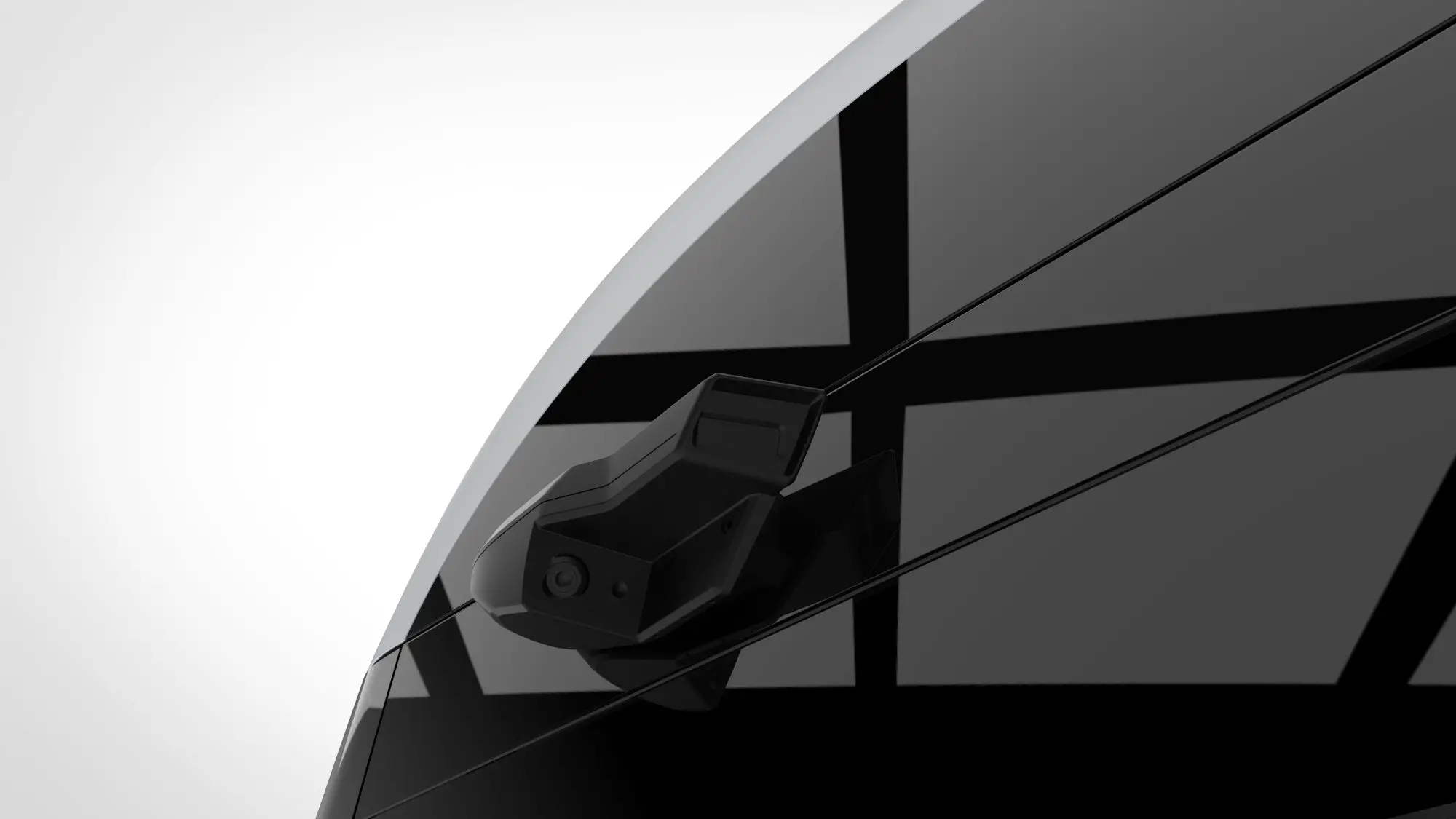

  • Innovative Camera System

Advantages

  • Range up to 700 km
  • Passenger experience; spacious, luxurious, much daylight, comfortable, almost no noise and an increased freedom of movement
  • Bus drivers don’t want anything else anymore; such a stable, comfortable, silent and safe bus
  • Only overnight charging needed
  • Much lower maintenance costs due to composite body

Different models different features

Dimensions and Weights
Body type
Door configuration
Passenger capacity
Kerb weight
Length
Width
Height
Floor to ceiling height
Step-in height
Electric drive
Maximum range
Rated voltage
Maximum power
Maximum traction torque
Batteries
Cell chemistry
Cell capacity and voltage
Pack capacity
Pack capacity - long range
Axles
Front (1st) Axle Capacity
2nd Axle Capacity
3th Axle Capacity
Rims and Tires
Rim
Tire
Ebusco 3.0

Ebusco
12-meter
3.0

Dimensions and Weights
Body type
Low entry / Low floor
+
Door configuration
2 / 3 doors
+
Passenger capacity
100 persons
+
Kerb weight
9950 kg
+
Length
12000 mm
+
Width
2550 mm
+
Height
3190 mm
+
Floor to ceiling height
2350 mm
+
Step-in height
340 mm
+
12-meter
Maximum range
700 km
+
Rated voltage
AC 3-phase 400V
+
Maximum power
2x125 kW
+
Maximum traction torque
22000 Nm
+
12-meter
Cell chemistry
LFP (inherent fireproof battery)
+
Cell capacity and voltage
104 Ah, 3.2 V
+
Pack capacity
>250 or >350 kWh
+
Pack capacity - long range version
>500 kWh
+
12-meter
Front Axle Capacity
8200 kg
+
Rear Axle Capacity
13000 kg
+
3th Axle Capacity
+
12-meter
Rim
22.5 x 7.5 / 22.5 x 11.75
+
Tire
275 70 R22.5 / 385 55 R22.5
+
Ebusco 3.0 18-meter

Ebusco
18-meter
3.0

Dimensions and Weights
Body type
Low floor
+
Door configuration
3 / 4 doors
+
Passenger capacity
140 persons
+
Kerb weight
14900 kg
+
Length
18000 mm
+
Width
2550 mm
+
Height
3190 mm
+
Floor to ceiling height
2350 mm
+
Step-in height
340 mm
+
18-meter
Maximum range
550 km
+
Rated voltage
AC 3-phase 400V
+
Maximum power
2x125 kW
+
Maximum traction torque
22000 Nm
+
18-meter
Cell chemistry
LFP (inherent fireproof battery)
+
Cell capacity and voltage
104 Ah, 3.2 V
+
Pack capacity
>350 kWh
+
Pack capacity - long range version
>500 kWh
+
18-meter
Front Axle Capacity
8200 kg
+
Rear Axle Capacity
10500 kg
+
3th Axle Capacity
8200 kg
+
18-meter
Rim
22.5 x 7.5 / 22.5 x 11.75
+
Tire
275 70 R22.5 / 385 55 R22.5
+

THE AWARD WINNING EBUSCO 3.0
