Ebusco
2.2

  • No doubt, 350 KM RANGE
  • No doubt, 90 PAX

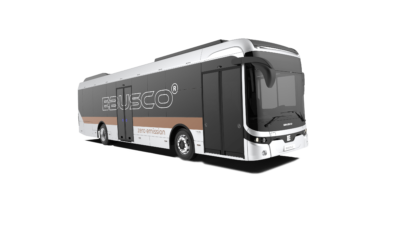

The Ebusco 2.2 is a very innovative electric bus.

Ebusco supplies the 2.2 in four variants: 12-meter (city & regional) bus, 13-meter bus, 13.5-meter and 18-meter bus.

With its >350 kWh battery pack, the Ebusco 2.2 (12 meters) can run a range of up to 350 km. With the optional >500 kWh battery pack, the Ebusco 2.2 (12 meters) can run a range of up to 450 km. With this, practically all city and regional transport can run on 1 battery in a day. At night, the buses will charge in a depot to be ready for a new day the next morning.

Download brochure

Why Ebusco 2.2

  • 350 km or 450 km on one battery (depending on battery package)
  • Low weight (12 metre bus: 12,850 kg)
    which is about 800 kg less than most electric buses
  • 1 charge = driving all day
  • No opportunity charging needed
  • Low TCO
  • Functions well also in extreme weather circumstances (as demonstrated by tests carried out in Scandinavia)
  • 8-year battery warranty

Equipment

  • LED lights
  • Air conditioning
  • Electric heating and heat pump
  • USB ports
  • Charging with plug; overnight charging in the depot (with CCS plug)

Main specs

  • Standard battery package: >350 kWh (optional >400 kWh) (12 metres) en >500 kWh (18 meters)
  • Consumption: average 0,7 kWh p/km
  • Made of high strength stainless steel
  • Length 12 m
  • Width 2,55 m
  • Height 3,250 m
  • GVW 19.500 kg
  • Kerb weight 12.850 kg

Ebusco
2.2
Live in action

Different models different features

Dimensions and Weights
Body type
Door configuration
Passenger capacity
Gross Vehicle weight
Length
Width
Height
Floor to ceiling height
Step-in height
Electric drive
Maximum range
Rated voltage
Maximum power
Maximum Torque
Batteries
Cell chemistry
Cell capacity and voltage
Pack capacity
Pack capacity - long range
Axles
Front Axle Capacity
Rear Axle Capacity
Rims and Tires
Rim
Tire

Ebusco
2.2 - 12M
12M

Dimensions and Weights
Body type
Low entry / Low floor
+
Door configuration
2 / 3 doors
+
Passenger capacity
90 persons
+
Gross Vehicle weight
12850 kg
+
Length
12000 mm
+
Width
2550 mm
+
Height
3250 mm
+
Floor to ceiling height
2400 mm
+
Step-in height
340 mm
+
2.2 - 12M
Maximum range
350 or 450 km
+
Rated voltage
AC 3ф 400V
+
Maximum power
2 x 125 kW
+
Maximum Torque
22000 Nm
+
2.2 - 12M
Cell chemistry
LFP (inherent fireproof battery)
+
Cell capacity and voltage
105 Ah, 3.2 V*
+
Pack capacity
363 kWh
+
Pack capacity - long range version
423 kWh
+
2.2 - 12M
Front Axle Capacity
8000 kg
+
Rear Axle Capacity
11500 kg
+
2.2 - 12M
Rim
22.5 x 7.5
+
Tire
275 / 70R / 22.5 Continental HA3 M + S
+
Ebusco electric bus

Ebusco
2.2 - 13M
13M

Dimensions and Weights
Body type
Low entry
+
Door configuration
2 / 3 doors
+
Passenger capacity
85 persons
+
Gross Vehicle weight
13550 kg
+
Length
12900 mm
+
Width
2550 mm
+
Height
3250 mm
+
Floor to ceiling height
2400 mm
+
Step-in height
340 mm
+
2.2 - 13M
Maximum range
350 or 450 km
+
Rated voltage
AC 3ф 400V
+
Maximum power
2 x 125 kW
+
Maximum Torque
22000 Nm
+
2.2 - 13M
Cell chemistry
LFP (inherent fireproof battery)
+
Cell capacity and voltage
105 Ah, 3.2 V*
+
Pack capacity
363 kWh
+
Pack capacity - long range version
423 kWh
+
2.2 - 13M
Front Axle Capacity
8000 kg
+
Rear Axle Capacity
11500 kg
+
2.2 - 13M
Rim
22.5 x 7.5
+
Tire
275 / 70R / 22.5 Continental HA3 M + S
+

Ebusco
2.2 - 13.5M
13.5M

Dimensions and Weights
Body type
Low entry
+
Door configuration
2 doors
+
Passenger capacity
78 persons
+
Gross Vehicle weight
14200 kg
+
Length
13500 mm
+
Width
2550 mm
+
Height
3250 mm
+
Floor to ceiling height
2400 mm
+
Step-in height
340 mm
+
2.2 - 13.5M
Maximum range
350 or 450 km
+
Rated voltage
AC 3ф 400V
+
Maximum power
2 x 125 kW
+
Maximum Torque
22000 Nm
+
2.2 - 13.5M
Cell chemistry
LFP (inherent fireproof battery)
+
Cell capacity and voltage
105 Ah, 3.2 V
+
Pack capacity
363 kWh
+
Pack capacity - long range version
423 kWh
+
2.2 - 13.5M
Front Axle Capacity
7500 kg
+
Rear Axle Capacity
11500 kg
+
2.2 - 13.5M
Rim
22.5 x 7.5
+
Tire
275 / 70R / 22.5 Continental HA3 M + S
+
Ebusco 2.2 18 meter

Ebusco
2.2 - 18M
18M

Dimensions and Weights
Body type
Low floor
+
Door configuration
3 / 4 doors
+
Passenger capacity
150 persons
+
Gross Vehicle weight
19000 kg
+
Length
18000 mm
+
Width
2550 mm
+
Height
3250 mm
+
Floor to ceiling height
2400 mm
+
Step-in height
340 mm
+
2.2 - 18M
Maximum range
350 or 450 km
+
Rated voltage
AC 3ф 400V
+
Maximum power
2 x 125 kW
+
Maximum Torque
22000 Nm
+
2.2 - 18M
Cell chemistry
LFP (inherent fireproof battery)
+
Cell capacity and voltage
105 Ah, 3.2 V*
+
Pack capacity
363 kWh
+
Pack capacity - long range version
525 kWh
+
2.2 - 18M
Front Axle Capacity
8100 kg
+
Rear Axle Capacity
11500 kg
+
2.2 - 18M
Rim
22.5 x 7.5
+
Tire
275 / 70R / 22.5 Continental HA3 M + S
+

Components & suppliers

ZF
Axles
Michelin
Tires
Alcoa
Wheels
Knorr-Bremse
Knorr ELC
Knorr-Bremse
Disk brakes
Ventura
Doors
Hella
Lighting
Mobitec
Led displays
Actia
Instruments
Continental
Dashboard
Gerflor
Flooring
Franz-Kiel/Ster
Passenger seating
Isri
Driver's seat
Schoepf/Kneitz
Upholstery
Happich
Stop buttons
Kesselsgranger
Design
