Ebusco
2.2

  • 550 KM RANGE
  • 61 PAX

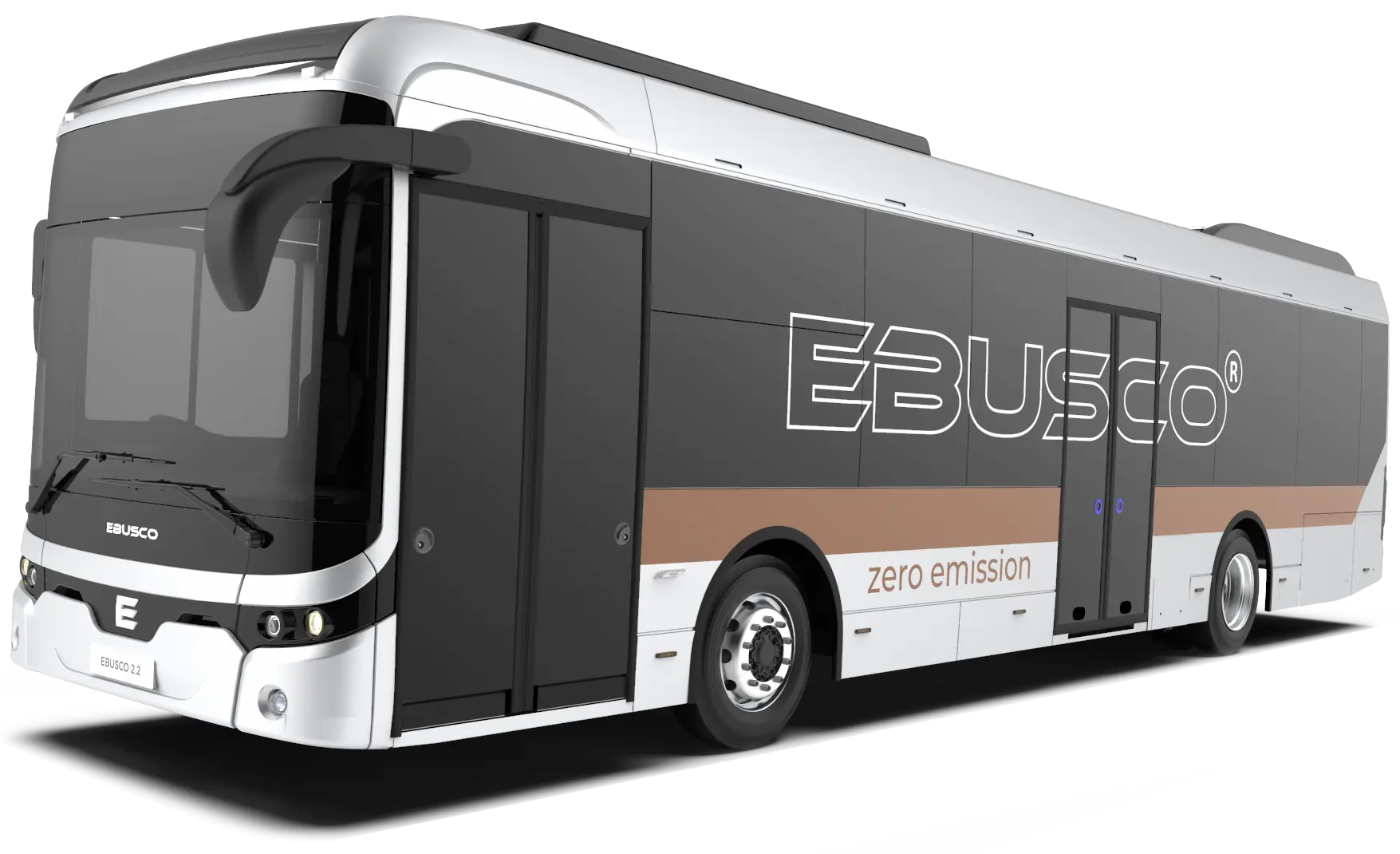

The Ebusco 2.2 is a very innovative electric bus.

Ebusco supplies the 2.2 in 2 variants: 12,5-meter (city & regional) bus and 18-meter bus.

With its >350 kWh battery pack, the Ebusco 2.2 (12,5 meters) can run a range of up to 350 km. With the optional >500 kWh battery pack, the Ebusco 2.2 (12,5 meters) can run a range of up to 550 km. With this, practically all city and regional transport can run on 1 battery in a day. At night, the buses will charge in a depot to be ready for a new day the next morning.

Download brochure
Download brochure

Why Ebusco 2.2

  • Up to 550 km on one battery (depending on battery package)
  • Low weight (12,5 metre bus: 12,850 kg)
    which is about 800 kg less than most electric buses
  • 1 charge = driving all day
  • No opportunity charging needed
  • Low TCO
  • Functions well also in extreme weather circumstances (as demonstrated by tests carried out in Scandinavia)
  • 8-year battery warranty

Equipment

  • LED lights
  • Air conditioning
  • Electric heating and heat pump
  • USB ports
  • Charging with plug; overnight charging in the depot (with CCS plug)
  • Innovative camerasystem (optional)

Main specs

  • Standard battery package: >350 kWh (optional >400 kWh) (12,5 metres) en >500 kWh (18 meters)
  • Made of high strength stainless steel
  • Length 12,5 m
  • Width 2,49 m
  • Height 3,30 m
  • GVW 19.000 kg
  • Kerb weight 12.850 kg

Different models different features

Dimensions and Weights
Body type
Door configuration
Passenger capacity
Kerb weight
Length
Width
Height
Floor to ceiling height
Step-in height
Electric drive
Maximum range
Rated voltage
Maximum power
Maximum Torque
Batteries
Cell chemistry
Cell capacity and voltage
Pack capacity
Pack capacity - long range
Axles
Front Axle Capacity
Rear Axle Capacity
3th Axle Capacity
Rims and Tires
Rim
Tire

Ebusco

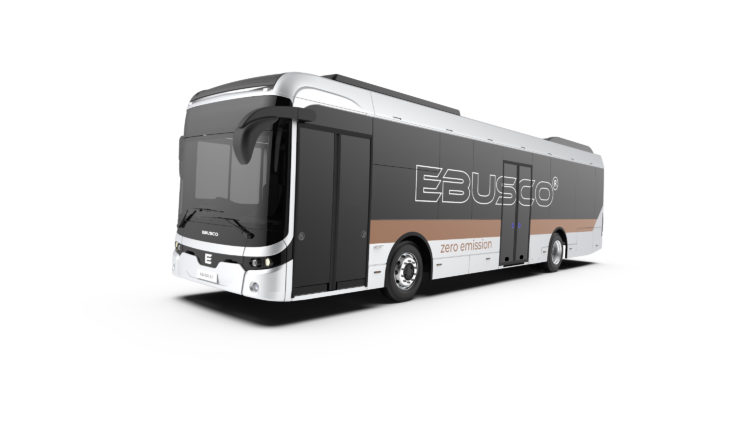

2.2 12,5M - 2D
12,5M 2-Door

Dimensions and Weights
Body type
Low entry
+
Door configuration
2 doors
+
Passenger capacity
61 (ADR Regulations) persons
+
Kerb weight
12850 kg
+
Length
12500 mm
+
Width
2490 mm
+
Height
3400 mm
+
Floor to ceiling height
2400 mm
+
Step-in height
340 mm
+
2.2 12,5M - 2D
Maximum range
550 km
+
Rated voltage
AC 3ф 400V
+
Maximum power
250 kW
+
Maximum Torque
17300 Nm
+
2.2 12,5M - 2D
Cell chemistry
LFP (inherent fireproof battery)
+
Cell capacity and voltage
105 Ah, 3.2 V*
+
Pack capacity
>400 kWh
+
Pack capacity - long range version
>500 kWh
+
2.2 12,5M - 2D
Front Axle Capacity
8000 kg
+
Rear Axle Capacity
11500 kg
+
3th Axle Capacity
+
2.2 12,5M - 2D
Rim
Steel 22.5 x 8.25
+
Tire
295/80-R22,5 Continental Urban TL HSU LRH
+

Ebusco

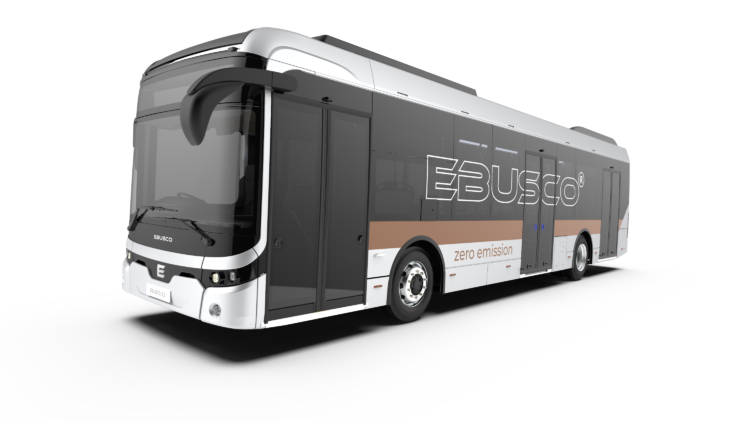

2.2 12,5M - 3D
12,5M 3-Door

Dimensions and Weights
Body type
Low floor
+
Door configuration
3 doors
+
Passenger capacity
61 (ADR Regulations) persons
+
Kerb weight
12850 kg
+
Length
12500 mm
+
Width
2490 mm
+
Height
3400 mm
+
Floor to ceiling height
2400 mm
+
Step-in height
340 mm
+
2.2 12,5M - 3D
Maximum range
550 km
+
Rated voltage
AC 3ф 400V
+
Maximum power
250 kW
+
Maximum Torque
17300 Nm
+
2.2 12,5M - 3D
Cell chemistry
LFP (inherent fireproof battery)
+
Cell capacity and voltage
105 Ah, 3.2 V
+
Pack capacity
>400 kWh
+
Pack capacity - long range version
+
2.2 12,5M - 3D
Front Axle Capacity
8000 kg
+
Rear Axle Capacity
11500 kg
+
3th Axle Capacity
+
2.2 12,5M - 3D
Rim
Steel 22.5 x 8.25
+
Tire
295/80-R22,5 Continental Urban TL HSU LRH
+

Ebusco

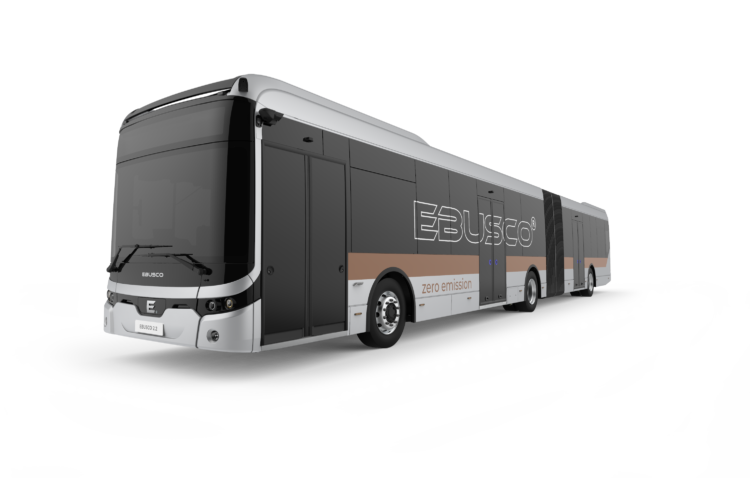

2.2 18M
18M 3-Door

Dimensions and Weights
Body type
Low floor
+
Door configuration
3 doors
+
Passenger capacity
150 persons
+
Kerb weight
19000 kg
+
Length
18000 mm
+
Width
2550 mm
+
Height
3176 mm
+
Floor to ceiling height
2400 mm
+
Step-in height
380 mm
+
2.2 18M
Maximum range
550 km
+
Rated voltage
AC 3ф 400V
+
Maximum power
250 kW
+
Maximum Torque
22000 Nm
+
2.2 18M
Cell chemistry
LFP (inherent fireproof battery)
+
Cell capacity and voltage
105 Ah, 3.2 V*
+
Pack capacity
>350 kWh
+
Pack capacity - long range version
>500 kWh
+
2.2 18M
Front Axle Capacity
8100 kg
+
Rear Axle Capacity
11500 kg
+
3th Axle Capacity
+
2.2 18M
Rim
22.5 x 8.25
+
Tire
295/80-R22.5 Continental Urban TL HSU LRH
+
