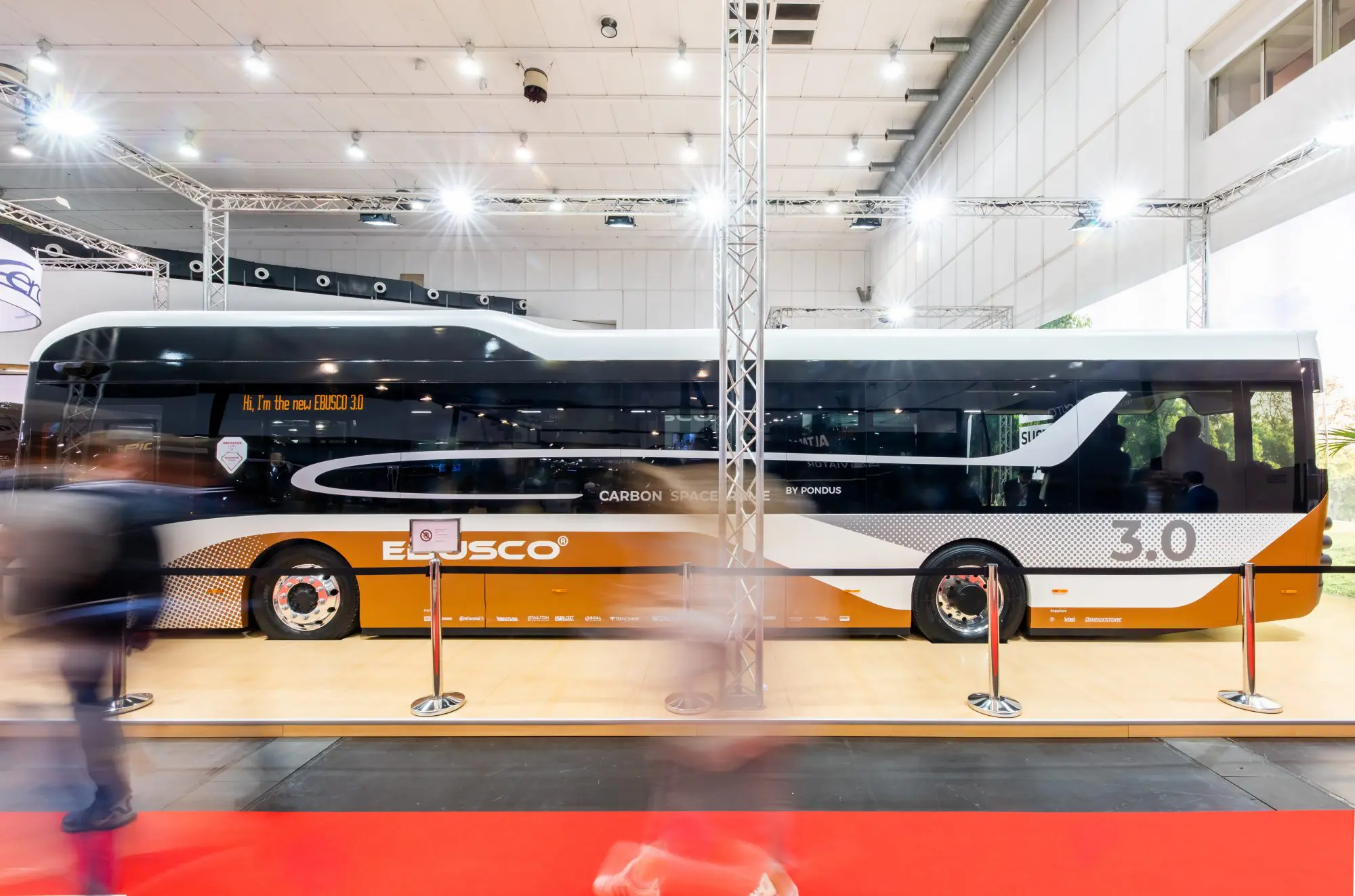

Ebusco
3.0
12M

  • up to 700 KM RANGE
  • 110 PAX
Download brochure

Specifications

Dimensions and Weights
Body type
Door configuration
Passenger capacity
Kerb weight
Length
Width
Height
Floor to ceiling height
Step-in height
Electric drive
Maximum range
Rated voltage
Maximum power
Maximum traction torque
Batteries
Cell chemistry
Cell capacity and voltage
Pack capacity
Pack capacity - long range
Axles
Front (1st) Axle Capacity
2nd Axle Capacity
3th Axle Capacity
Rims and Tires

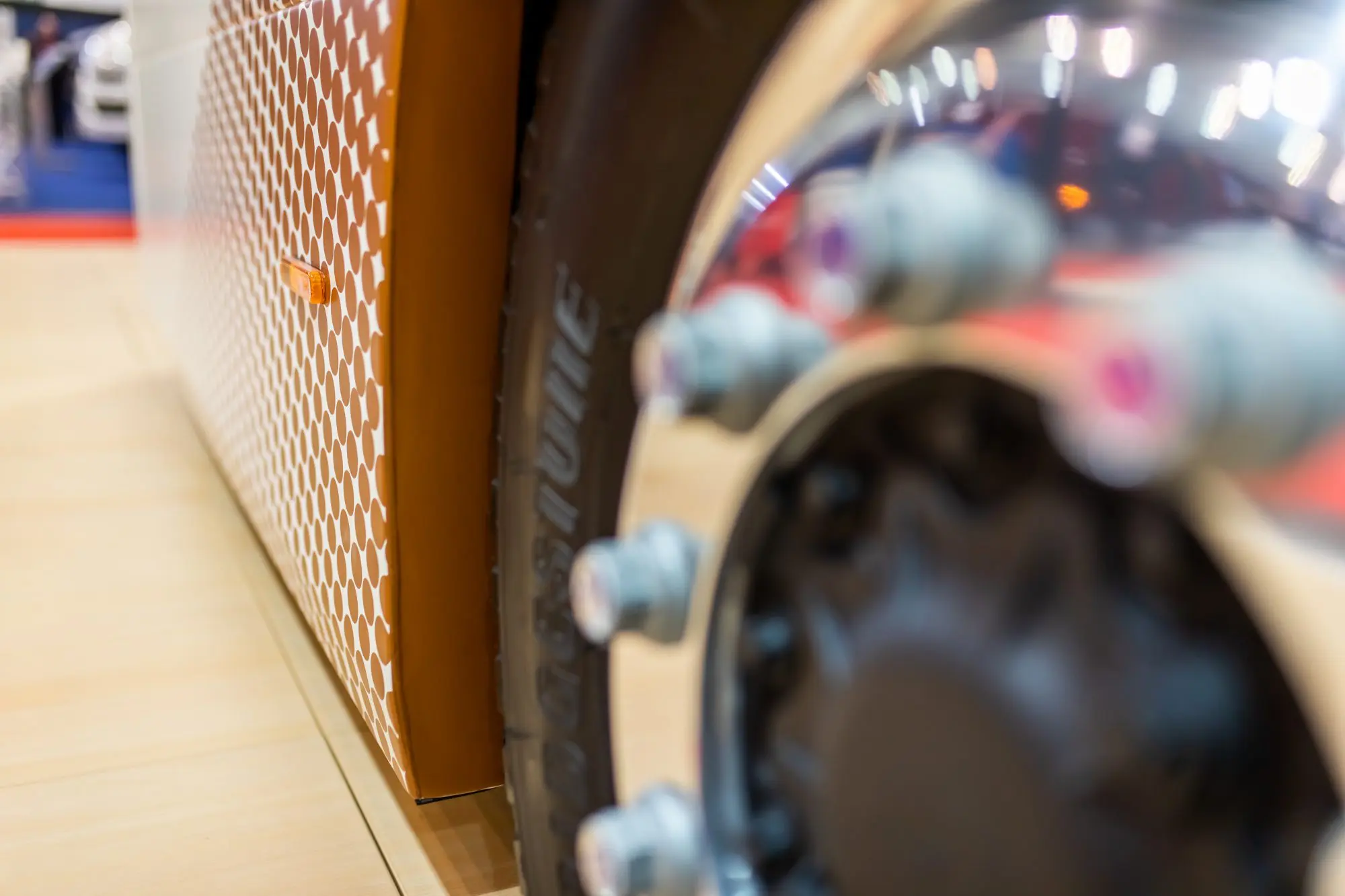

Rim
Tire
Ebusco 3.0

Ebusco
3.0 - 12M
12M

Dimensions and Weights
Body type
Low entry / Low floor
+
Door configuration
2 / 3 doors
+
Passenger capacity
110 persons
+
Kerb weight
9950 kg
+
Length
12000 mm
+
Width
2550 mm
+
Height
3190 mm
+
Floor to ceiling height
2350 mm
+
Step-in height
340 mm
+
3.0 - 12M
Maximum range
up to 700 km
+
Rated voltage
AC 3ф 400V
+
Maximum power
2x125 kW
+
Maximum traction torque
22000 Nm
+
3.0 - 12M
Cell chemistry
LFP (inherent fireproof battery)
+
Cell capacity and voltage
105 Ah, 3.2 V
+
Pack capacity
>250, >350 or >500 kWh
+
Pack capacity - long range version
>350 kWh
+
3.0 - 12M
Front Axle Capacity
8165 kg
+
Rear Axle Capacity
10300 kg
+
3th Axle Capacity
+
3.0 - 12M
Rim
+
Tire
+
