Ebusco
2.2
18M

  • 550 KM RANGE
  • 150 PAX

Specifications

Dimensions and Weights
Body type
Door configuration
Passenger capacity
Kerb weight
Length
Width
Height
Floor to ceiling height
Step-in height
Electric drive
Maximum range
Rated voltage
Maximum power
Maximum traction torque
Batteries
Cell chemistry
Cell capacity and voltage
Pack capacity
Pack capacity - long range
Axles
Front (1st) Axle Capacity
2nd Axle Capacity
3th Axle Capacity
Rims and Tires
Rim
Tire

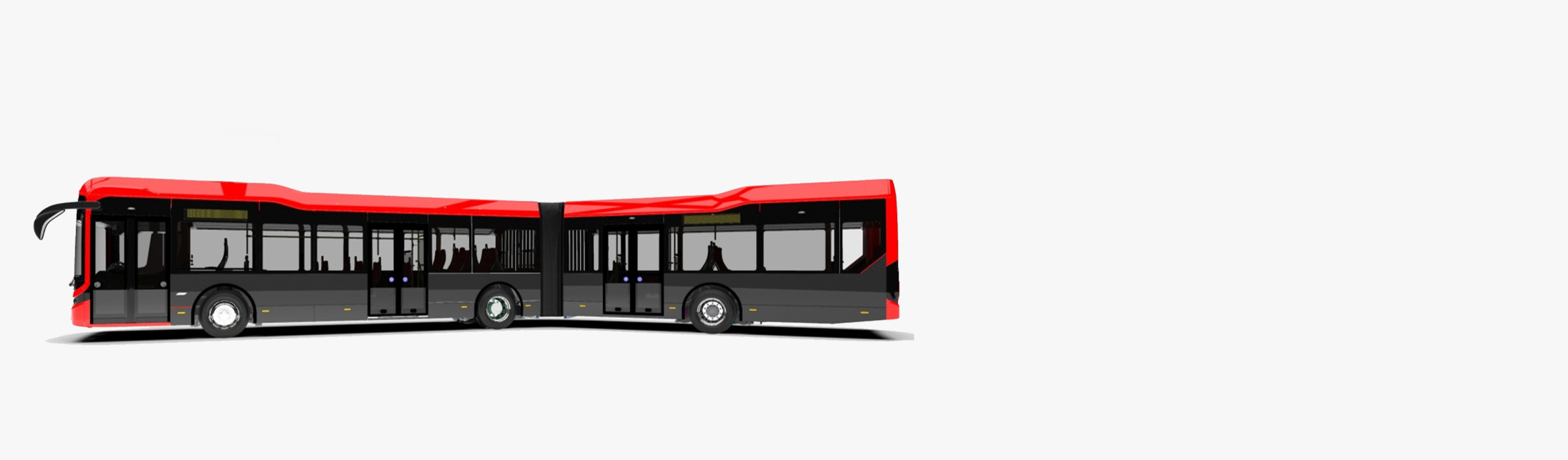

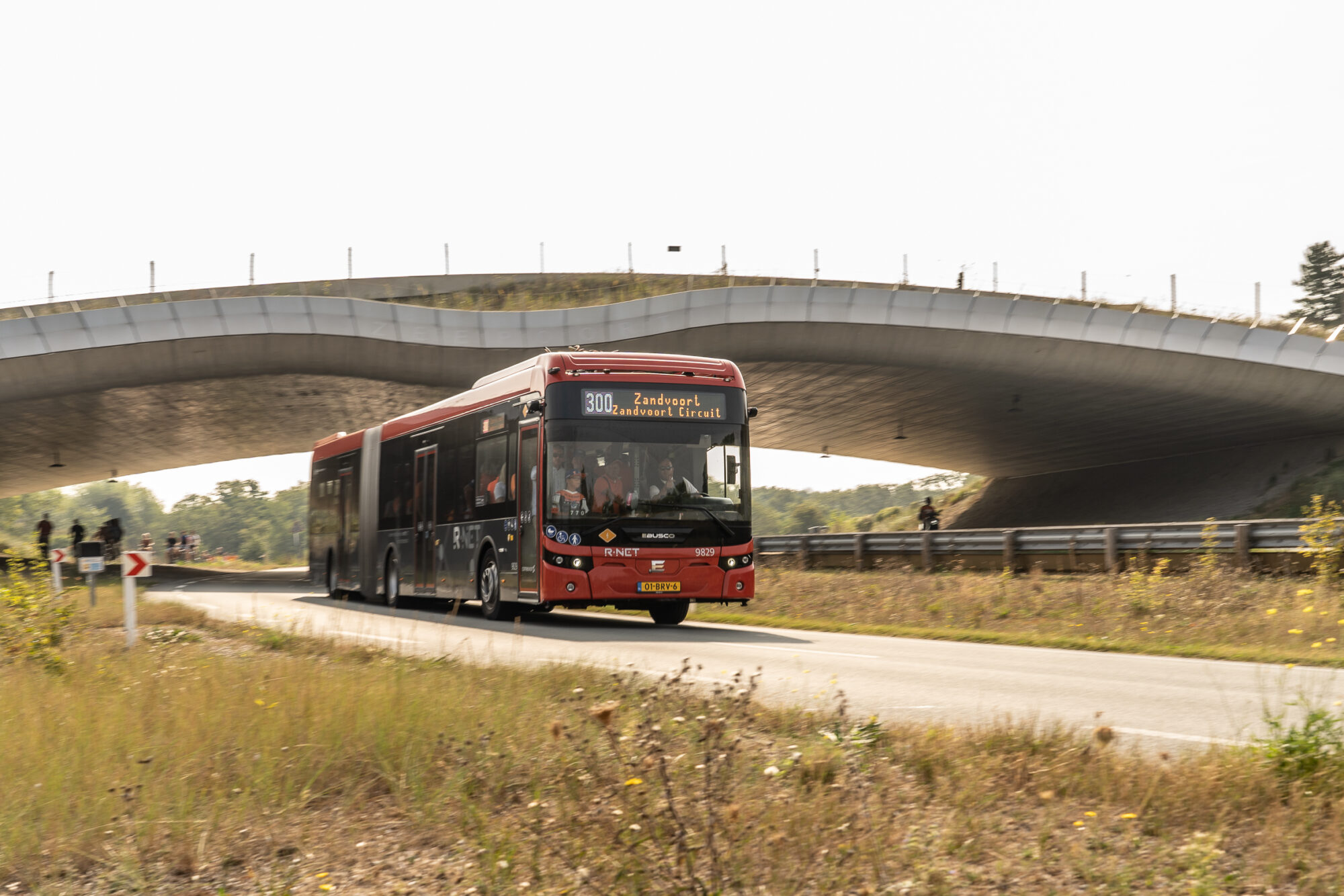

Ebusco 2.2 18 meter

Ebusco
2.2 - 18M
18M

Dimensions and Weights
Body type
Low floor
+
Door configuration
3 / 4 doors
+
Passenger capacity
150 persons
+
Kerb weight
19465 kg
+
Length
18000 mm
+
Width
2550 mm
+
Height
3175 mm
+
Floor to ceiling height
2400 mm
+
Step-in height
340 mm
+
2.2 - 18M
Maximum range
550 km
+
Rated voltage
AC 3ф 400V
+
Maximum power
2 x 125 kW
+
Maximum traction torque
22000 Nm
+
2.2 - 18M
Cell chemistry
LFP (inherent fireproof battery)
+
Cell capacity and voltage
228 Ah, 3.22 V* or 302Ah, 3.22V*
+
Pack capacity
>500 kWh
+
Pack capacity - long range version
>500 kWh
+
2.2 - 18M
Front Axle Capacity
8165 kg
+
Rear Axle Capacity
11500 kg
+
3th Axle Capacity
10000 kg
+
2.2 - 18M
Rim
22.5 x 7.5
+
Tire
275 / 70R / 22.5 Continental HA3 M + S or 275/70R22.5 Michelin X InCity EV Z
+
