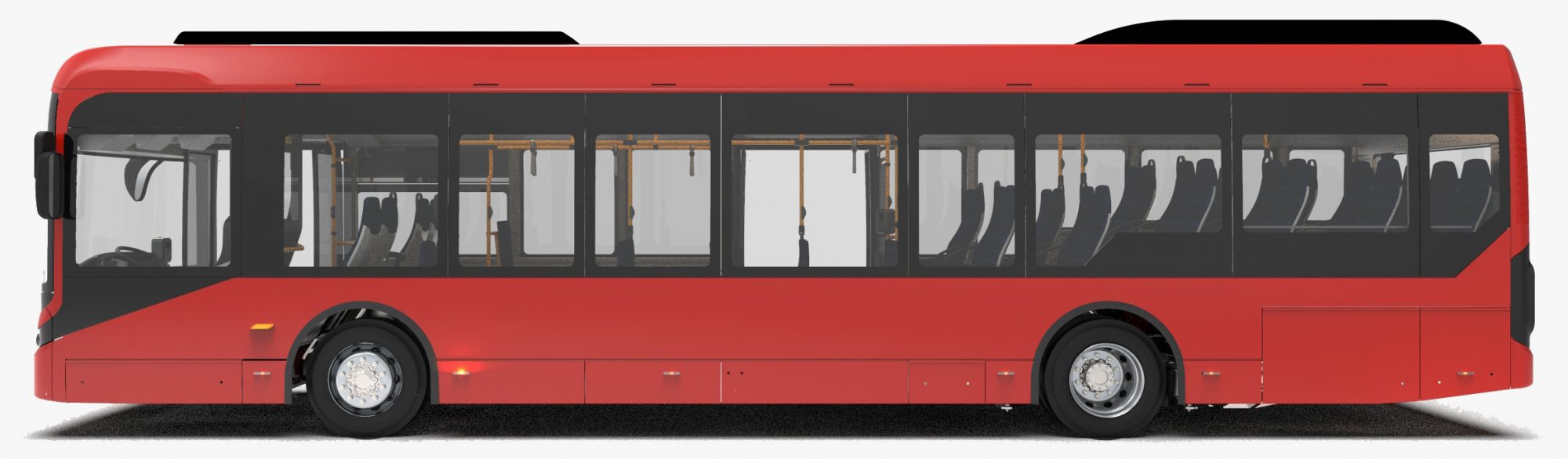

Ebusco
2.2
13.5M

  • 500 KM RANGE
  • 78 PAX

Specifications

Dimensions and Weights
Body type
Door configuration
Passenger capacity
Kerb weight
Length
Width
Height
Floor to ceiling height
Step-in height
Electric drive
Maximum range
Rated voltage
Maximum power
Maximum traction torque
Batteries
Cell chemistry
Cell capacity and voltage
Pack capacity
Pack capacity - long range
Axles
Front Axle Capacity
Rear Axle Capacity
3th Axle Capacity
Rims and Tires
Rim
Tire

Ebusco
2.2 - 13.5M
13.5M

Dimensions and Weights
Body type
Low entry
+
Door configuration
2 doors
+
Passenger capacity
78 persons
+
Kerb weight
14900 kg
+
Length
13500 mm
+
Width
2550 mm
+
Height
3250 mm
+
Floor to ceiling height
2400 mm
+
Step-in height
340 mm
+
2.2 - 13.5M
Maximum range
500 km
+
Rated voltage
AC 3ф 400V
+
Maximum power
2 x 125 kW
+
Maximum traction torque
22000 Nm
+
2.2 - 13.5M
Cell chemistry
LFP (inherent fireproof battery)
+
Cell capacity and voltage
105 Ah, 3.2 V
+
Pack capacity
>350 kWh
+
Pack capacity - long range version
>400 kWh
+
2.2 - 13.5M
Front Axle Capacity
7500 kg
+
Rear Axle Capacity
11500 kg
+
3th Axle Capacity
+
2.2 - 13.5M
Rim
22.5 x 7.5
+
Tire
275 / 70R / 22.5 Continental HA3 M + S
+
