Ebusco
3.0

  • up to 700 KM RANGE
  • Max. 150 PAX

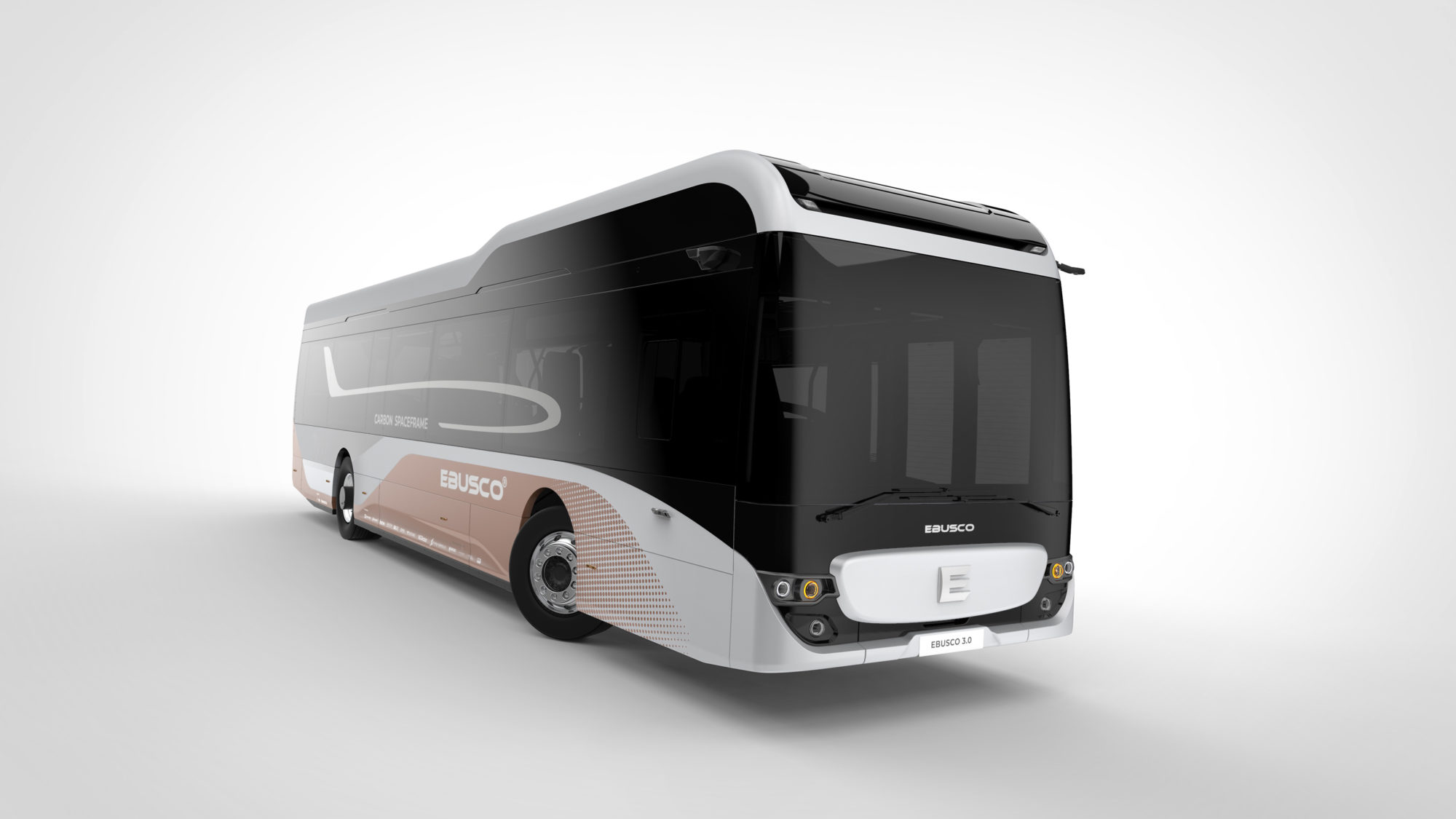

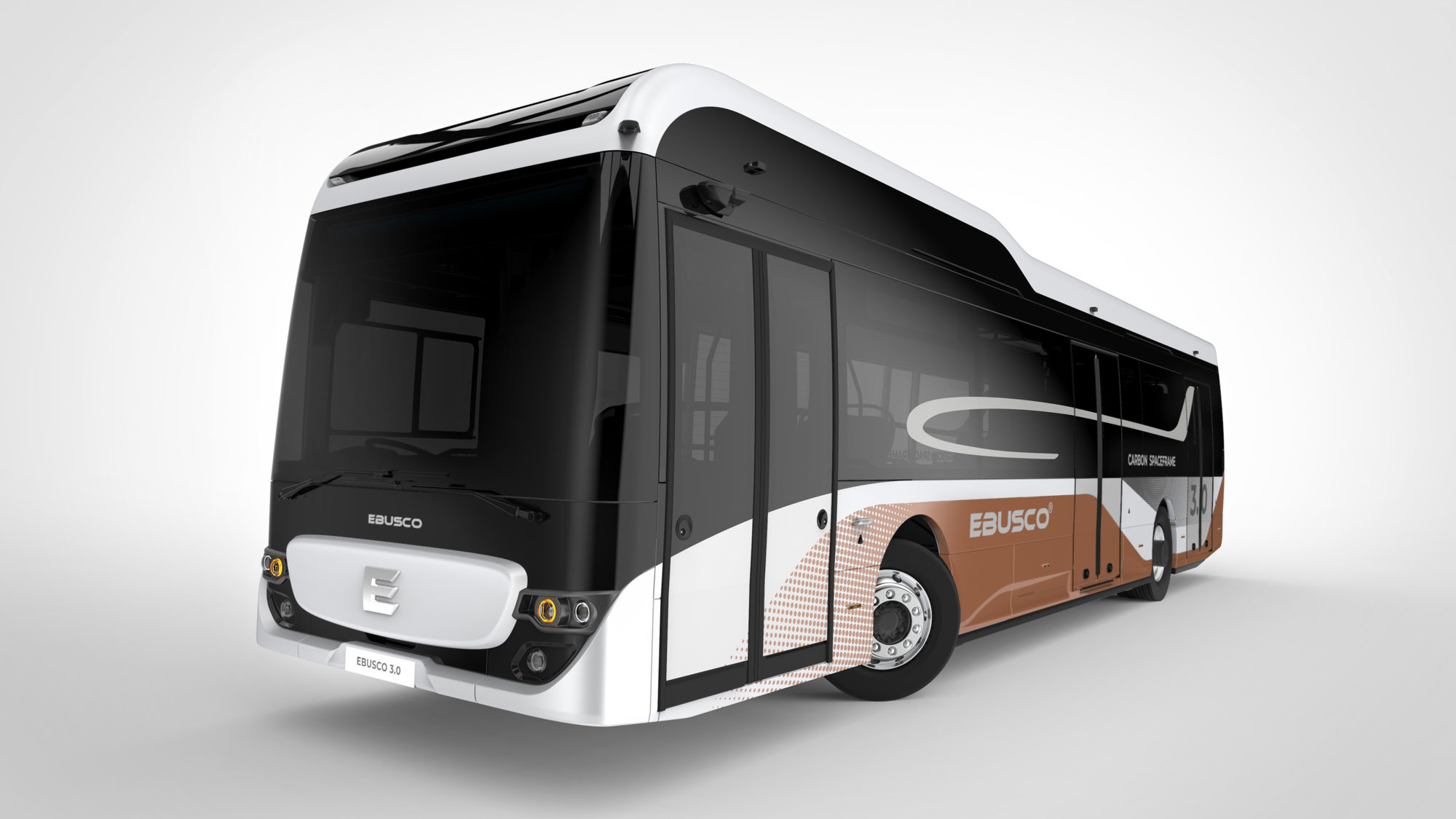

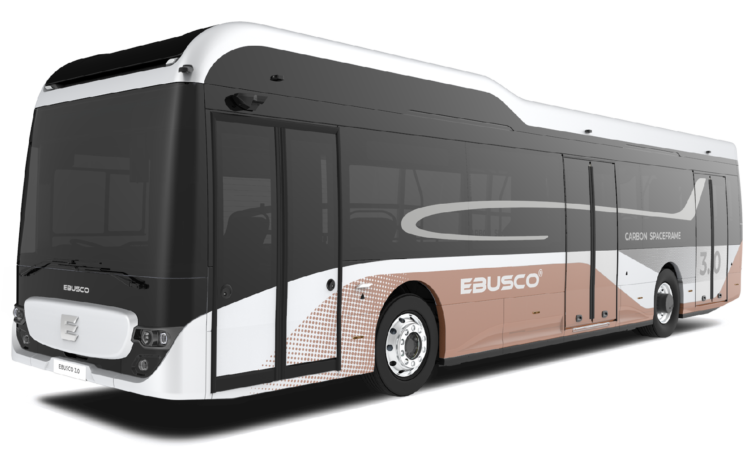

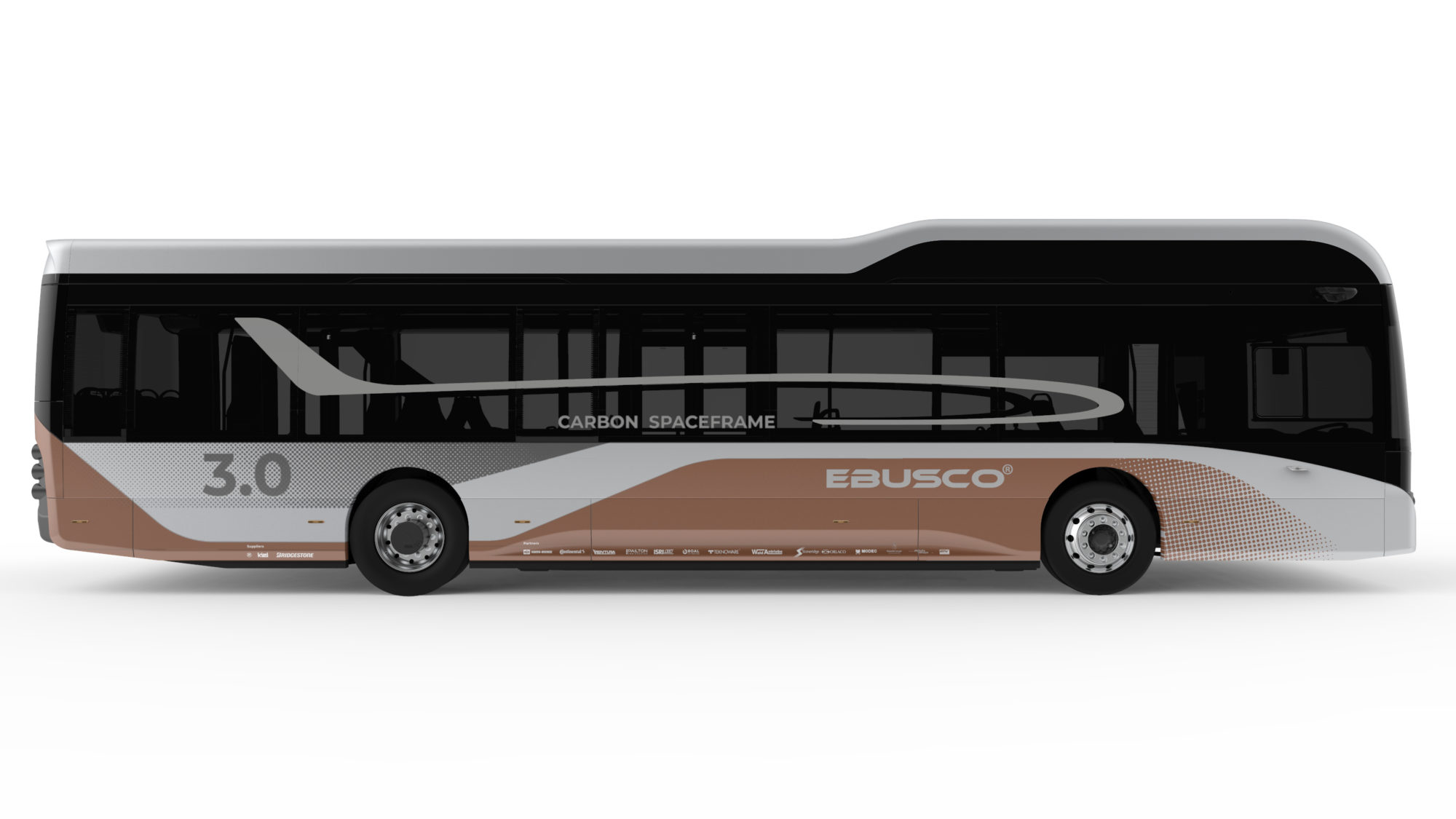

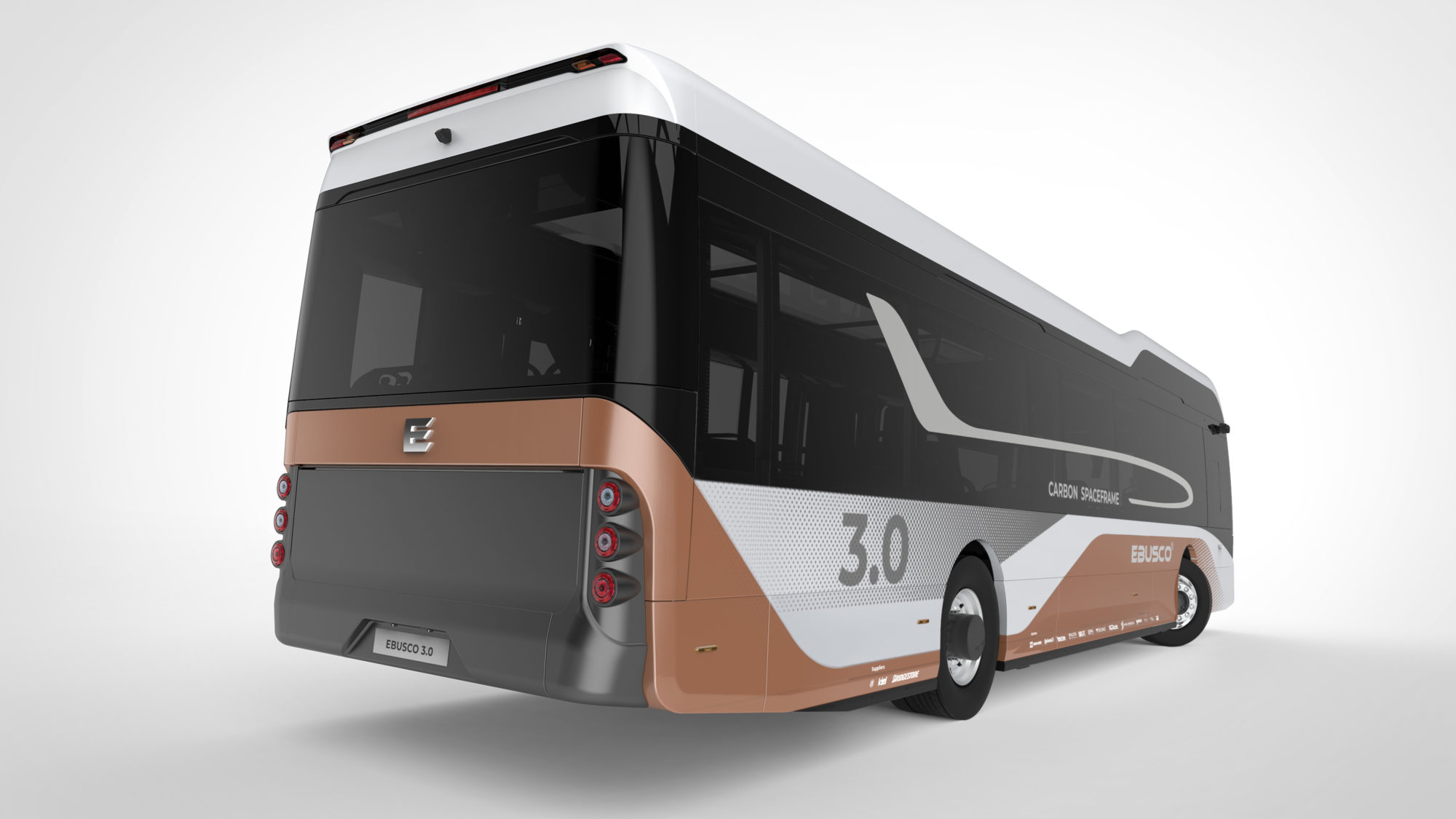

The Ebusco 3.0 designed to be a gamechanger in the electric bus industry

Not constrained by a past reliant on fossil fuel, Ebusco has a ground-breaking and unique approach to developing electric buses. A multifunctional team of key experts, who have earned their spurs in the field of aerospace, automotive and electronics, has developed an innovative fully electric bus which goes beyond all existing boundaries to redefine the world of public transportation: Ebusco 3.0.

Ebusco’s new bus breaks the barriers of current bus design in our drive for sustainable public transport. Not only by using composite materials in the main structure of the body, but also in its approach to focus the design around passenger comfort, driver support and Total Cost of Ownership. Last but not least, it contributes to make the world we live in a safer and healthier place.

Download brochure

Why Ebusco 3.0

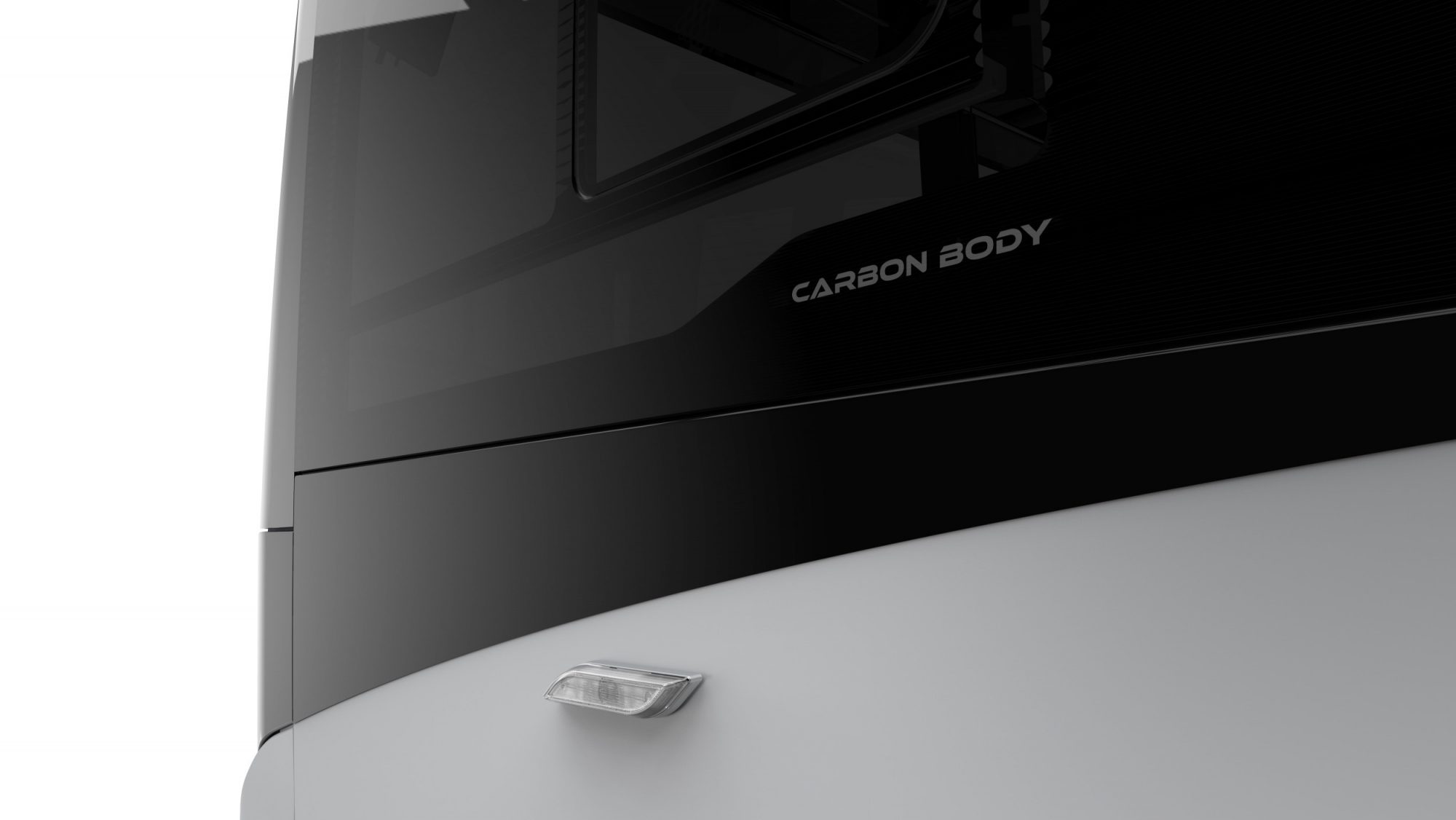

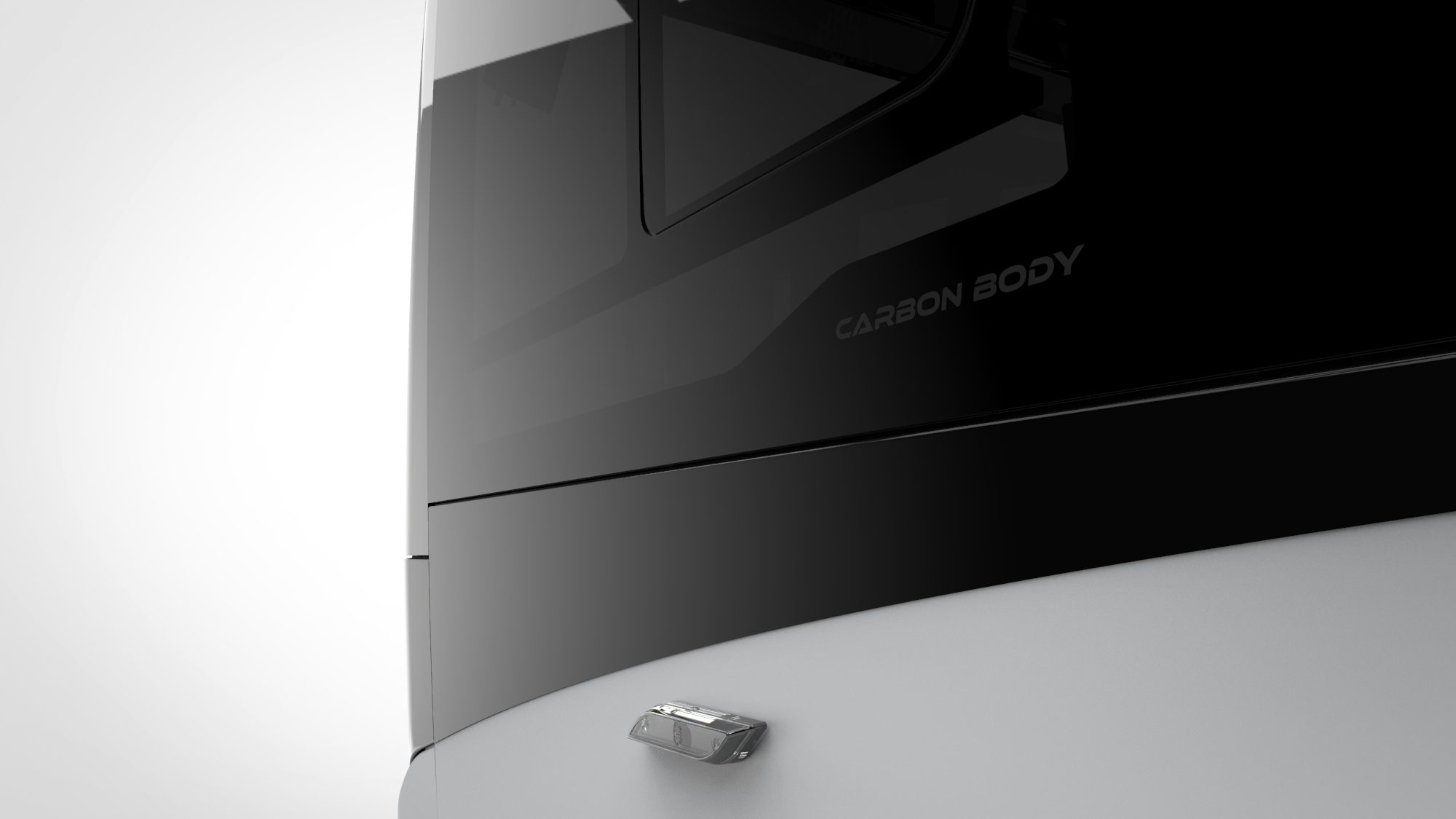

  • Composite bus; substantially lighter (27% | 9,500 kg)
  • Extends the operational life span of the bus up to 25 years

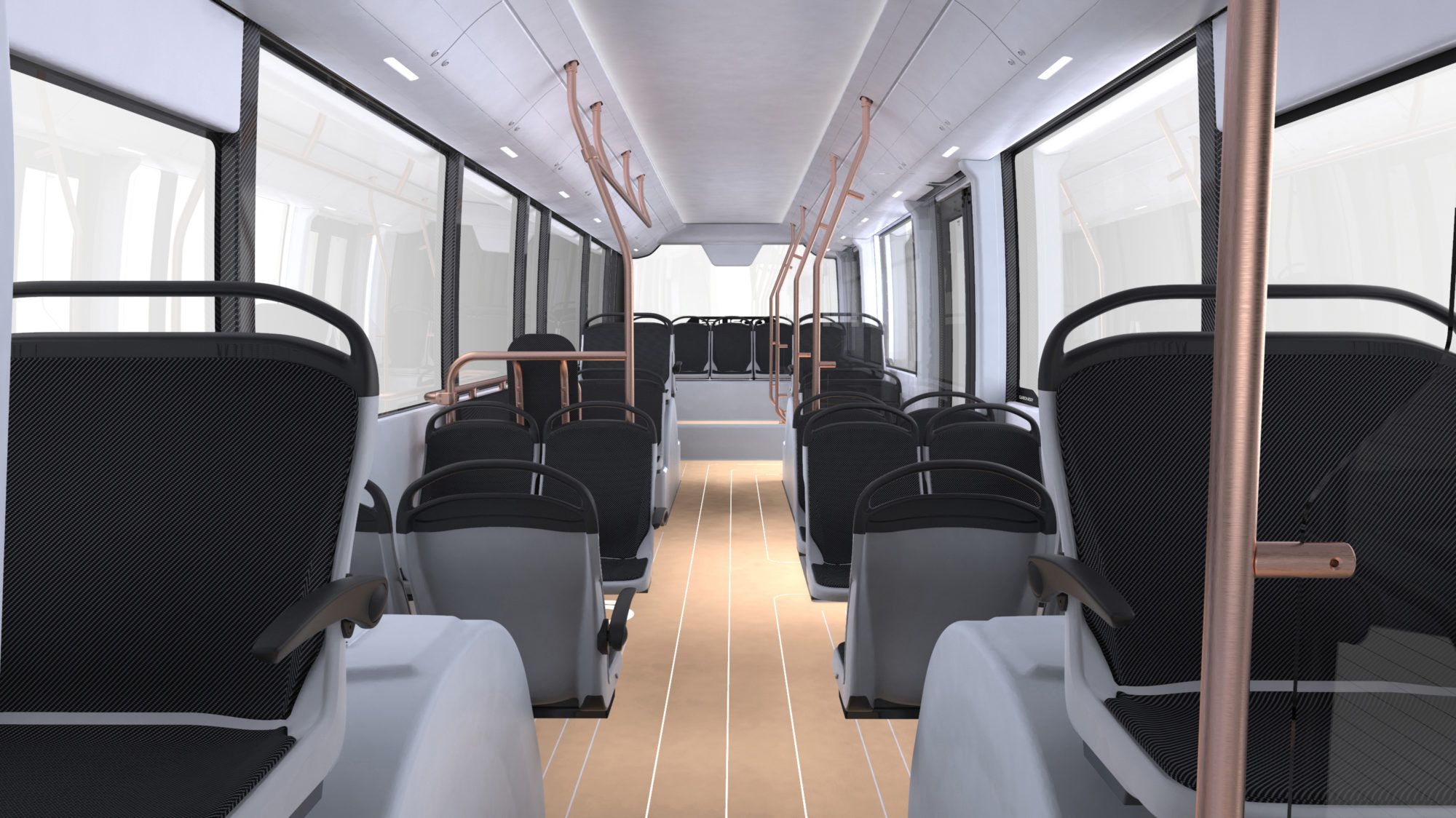

  • Revolutionary design with a fully flat floor
  • Floor-mounted batteries free up roof space for customisations like solar panels
  • Reduced Total Cost of Ownership

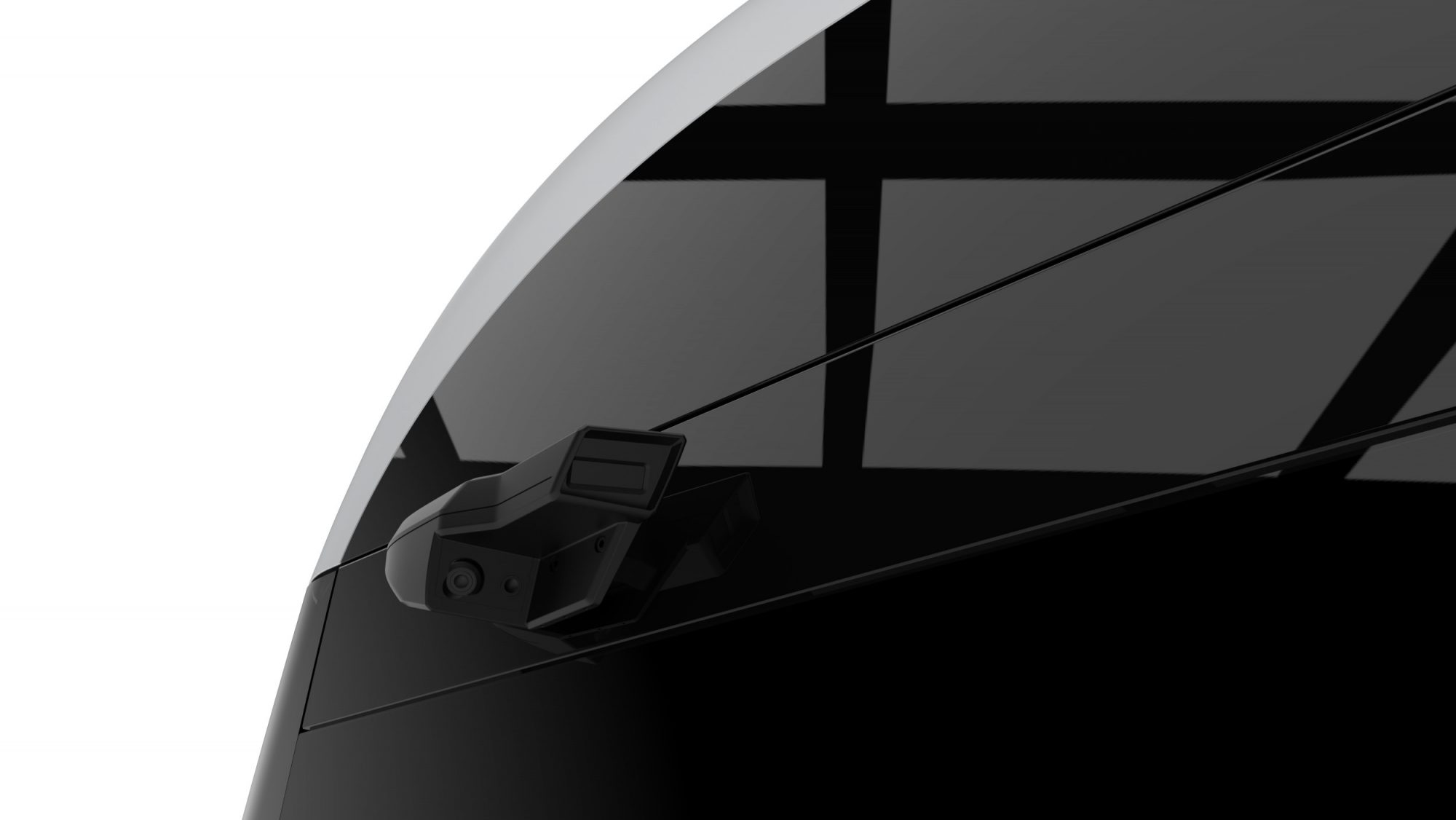

  • Innovative camerasystem

Advantages

  • Range up to 700 km

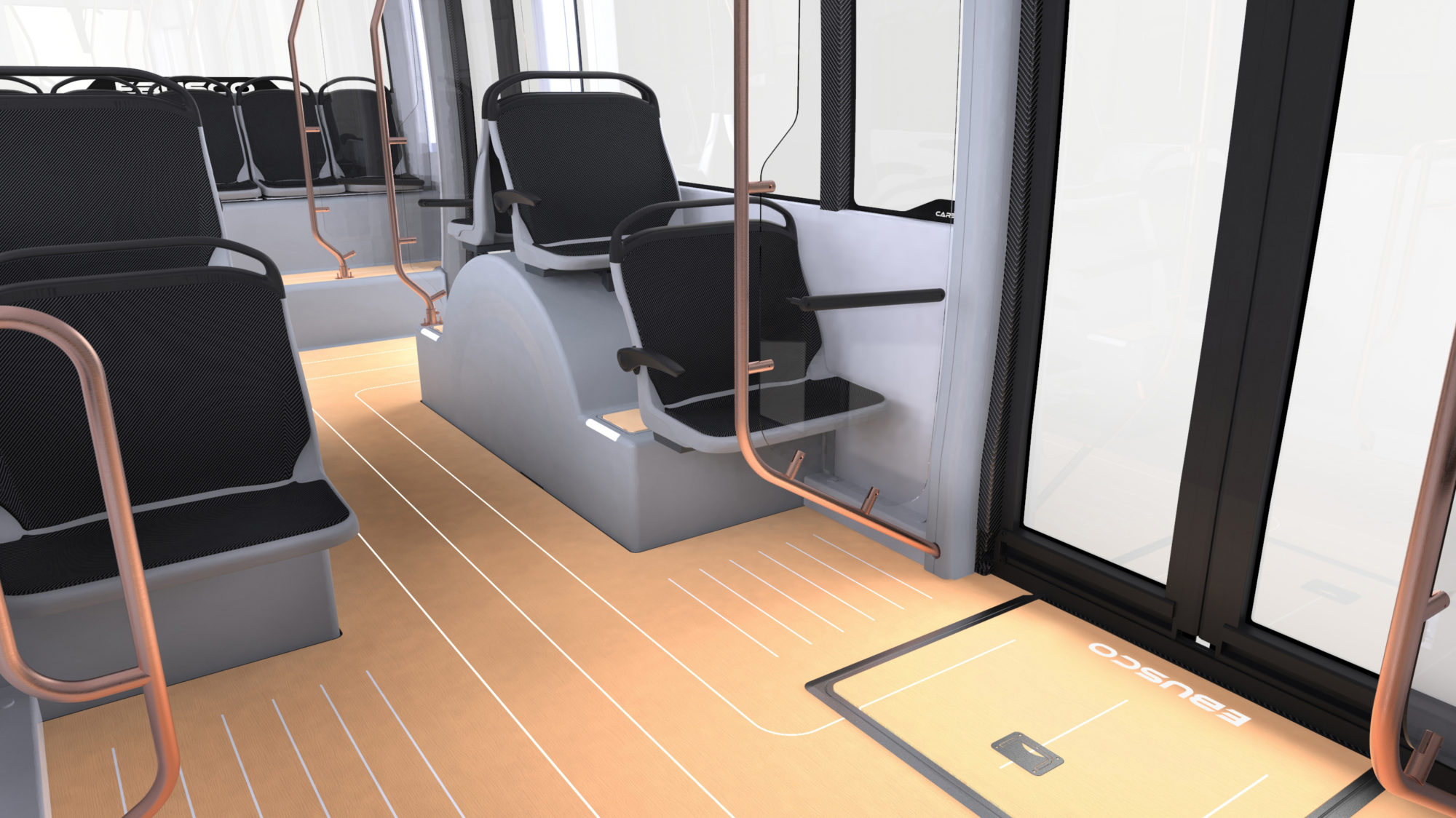

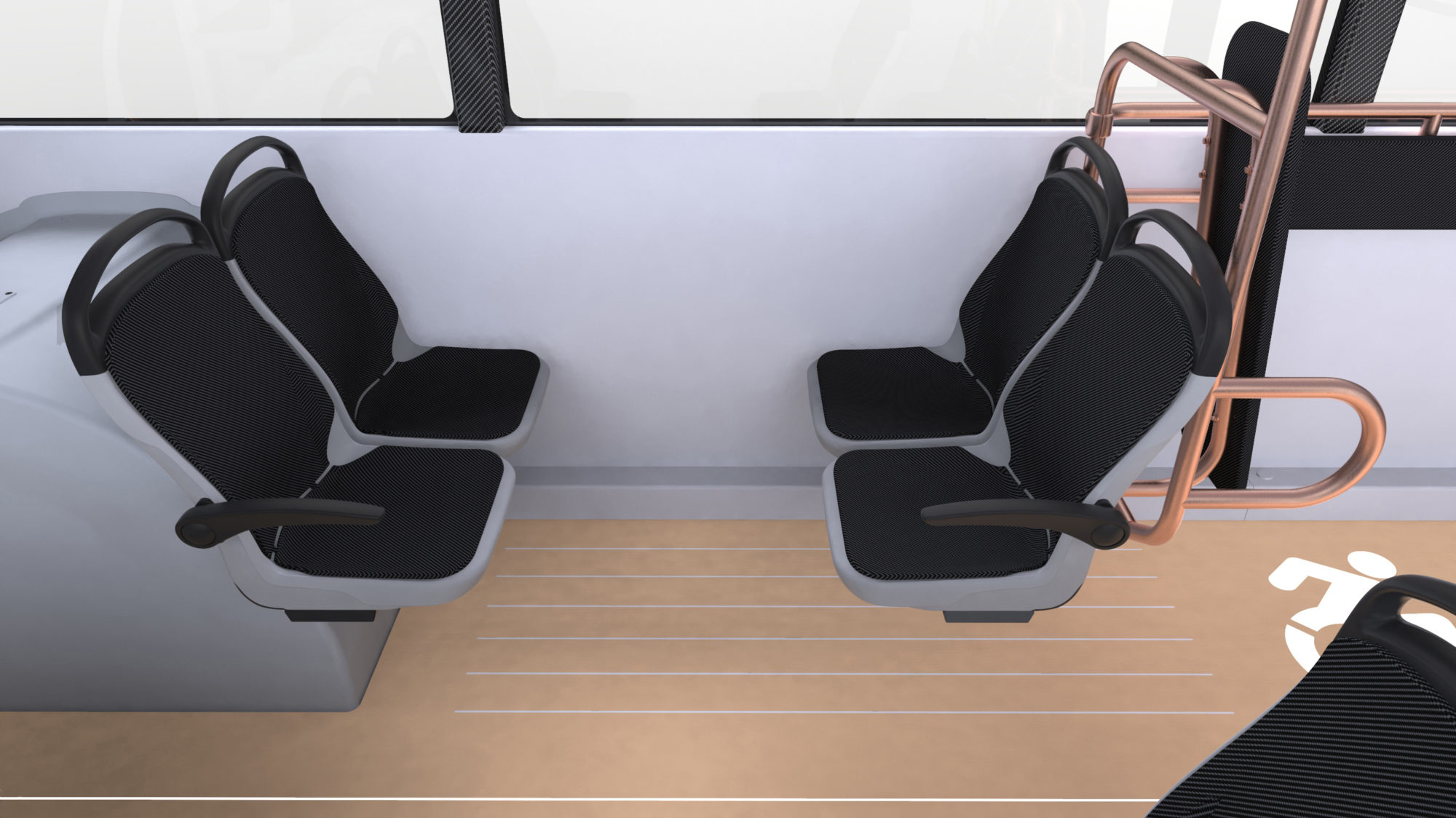

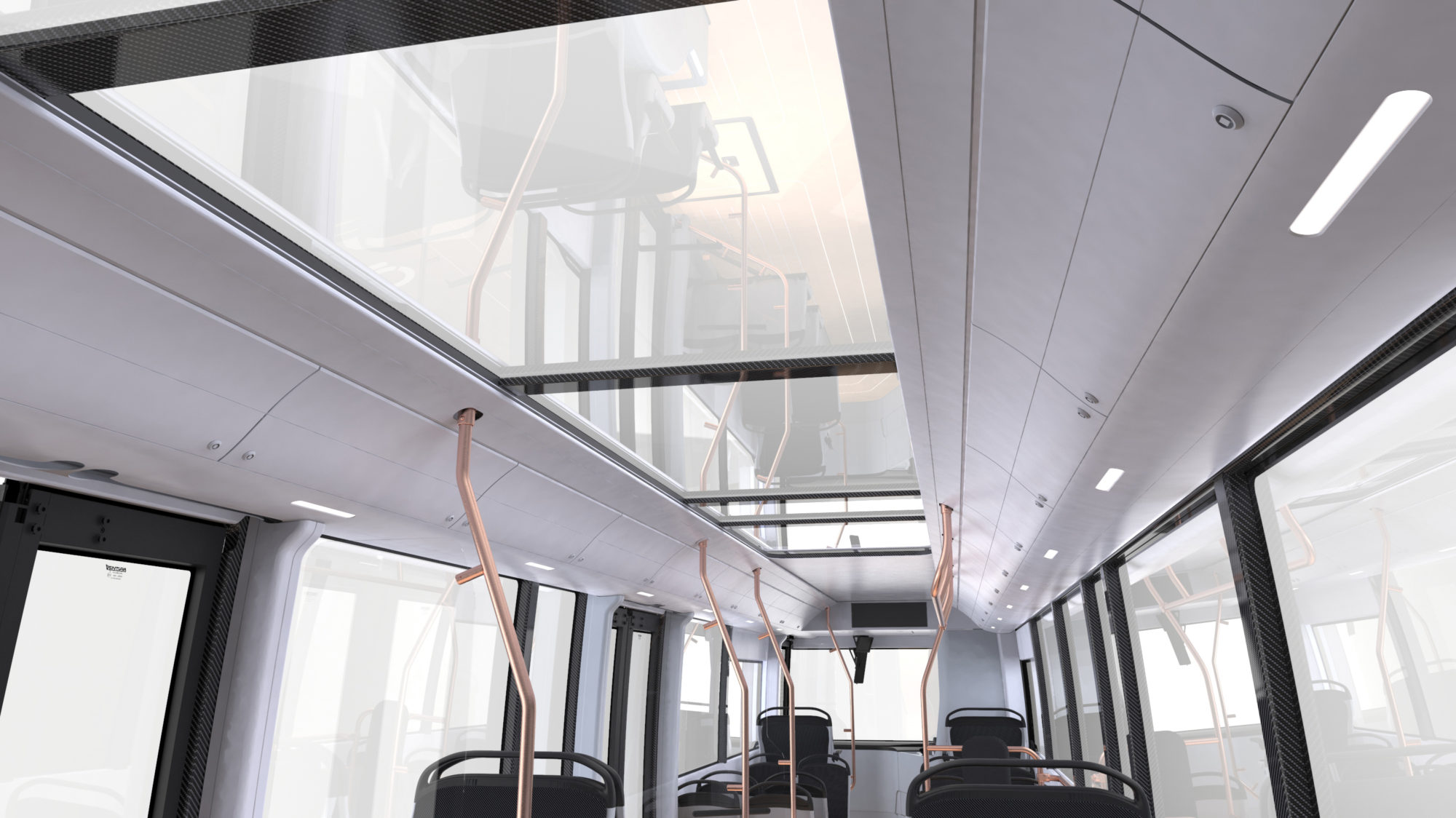

  • Passenger experience; spacious, luxurious, much daylight, comfortable, almost no noise and an increased freedom of movement

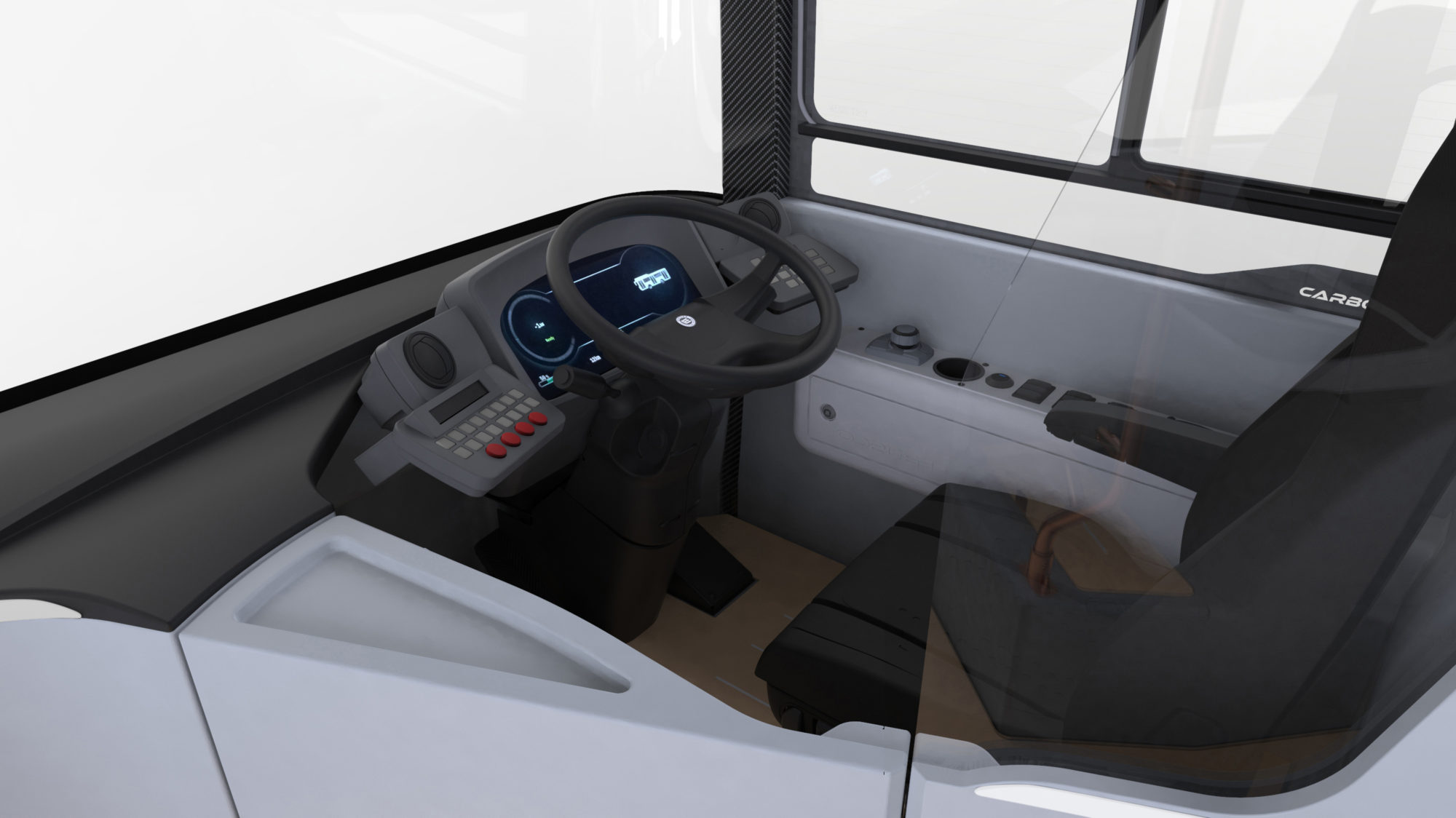

  • Bus drivers don’t want anything else anymore; such a stable, comfortable, silent and safe bus
  • Only overnight charging needed
  • Much lower maintenance costs due to composite body

Different models different features

Dimensions and Weights
Body type
Door configuration
Passenger capacity
Kerb weight
Length
Width
Height
Floor to ceiling height
Step-in height
Electric drive
Maximum range
Rated voltage
Maximum power
Maximum traction torque
Batteries
Cell chemistry
Cell capacity and voltage
Pack capacity
Pack capacity - long range
Axles
Front Axle Capacity
Rear Axle Capacity
3th Axle Capacity
Rims and Tires
Rim
Tire

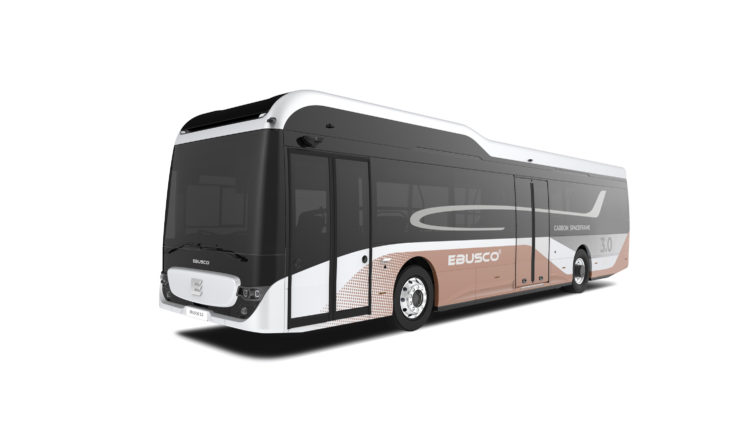

Ebusco
3.0 - 12,5M
12,5M

Dimensions and Weights
Body type
Low entry / Low floor
+
Door configuration
2 / 3 doors
+
Passenger capacity
110 persons
+
Kerb weight
9950 kg
+
Length
12500 mm
+
Width
2550 mm
+
Height
3190 mm
+
Floor to ceiling height
2350 mm
+
Step-in height
340 mm
+
3.0 - 12,5M
Maximum range
up to 700 km
+
Rated voltage
AC 3ф 400V
+
Maximum power
250 kW
+
Maximum traction torque
22000 Nm
+
3.0 - 12,5M
Cell chemistry
LFP (inherent fireproof battery)
+
Cell capacity and voltage
105 Ah, 3.2 V
+
Pack capacity
>250, >350 or >500 kWh
+
Pack capacity - long range version
>350 kWh
+
3.0 - 12,5M
Front Axle Capacity
8165 kg
+
Rear Axle Capacity
10298 kg
+
3th Axle Capacity
+
3.0 - 12,5M
Rim
+
Tire
+

Ebusco
3.0 - 18M
18M

Dimensions and Weights
Body type
Low floor
+
Door configuration
3 / 4 doors
+
Passenger capacity
150 persons
+
Kerb weight
14900 kg
+
Length
18000 mm
+
Width
2550 mm
+
Height
3190 mm
+
Floor to ceiling height
2350 mm
+
Step-in height
340 mm
+
3.0 - 18M
Maximum range
up to 700 km
+
Rated voltage
AC 3ф 400V
+
Maximum power
2x125 kW
+
Maximum traction torque
22000 Nm
+
3.0 - 18M
Cell chemistry
LFP (inherent fireproof battery)
+
Cell capacity and voltage
105 Ah, 3.2 V
+
Pack capacity
>250, >350 or >500 kWh
+
Pack capacity - long range version
>500 kWh
+
3.0 - 18M
Front Axle Capacity
8165 kg
+
Rear Axle Capacity
8165 kg
+
3th Axle Capacity
8165 kg
+
3.0 - 18M
Rim
+
Tire
275
+
