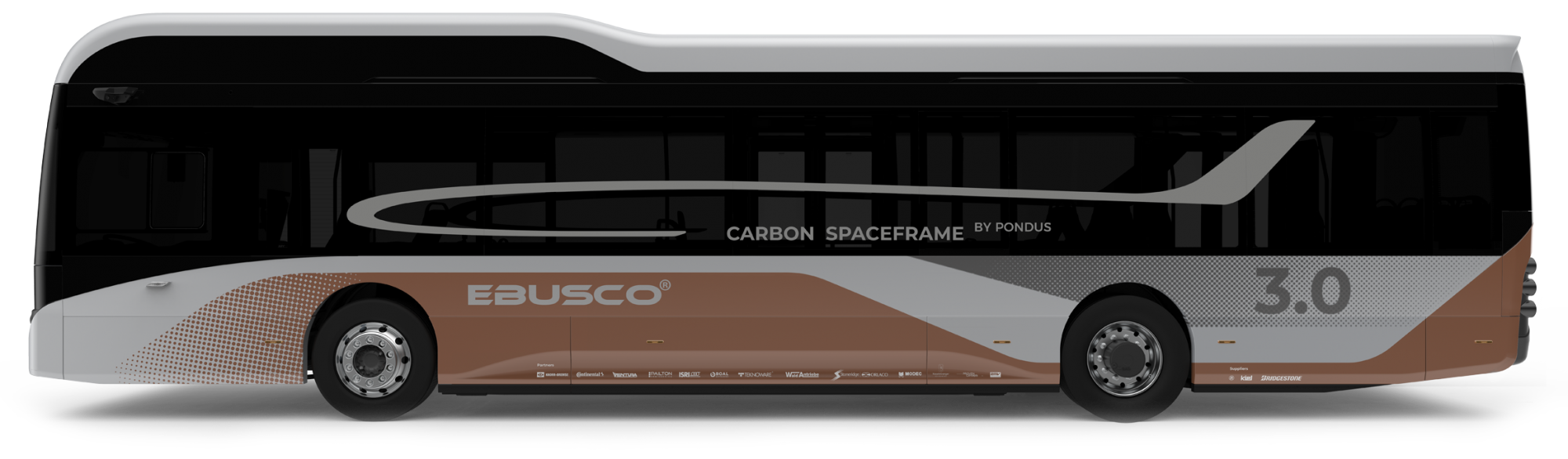

Ebusco

3.0

3.0

Dimensions and Weights

Body type

Low floor

+

Door configuration

3 / 4 doors

+

Passenger capacity

140 persons

+

Kerb weight

14900 ^kg

+

Length

18000 ^mm

+

Width

2550 ^mm

+

Height

3190 ^mm

+

Floor to ceiling height

2350 ^mm

+

Step-in height

340 ^mm

+

18-meter

Maximum range

550 ^km

+

Rated voltage

AC 3-phase 400V

+

Maximum power

2x125 ^kW

+

Maximum traction torque

22000 ^Nm

+

18-meter

Cell chemistry

LFP (inherent fireproof battery)

+

Cell capacity and voltage

104 Ah, 3.2 V

+

Pack capacity

>350 ^kWh

+

Pack capacity - long range version

>500 ^kWh

+

18-meter

Front Axle Capacity

8200 ^kg

+

Rear Axle Capacity

10500 ^kg

+

3th Axle Capacity

8200 ^kg

+

18-meter

Rim

22.5 x 7.5 / 22.5 x 11.75

+

Tire

275 70 R22.5 / 385 55 R22.5

+
