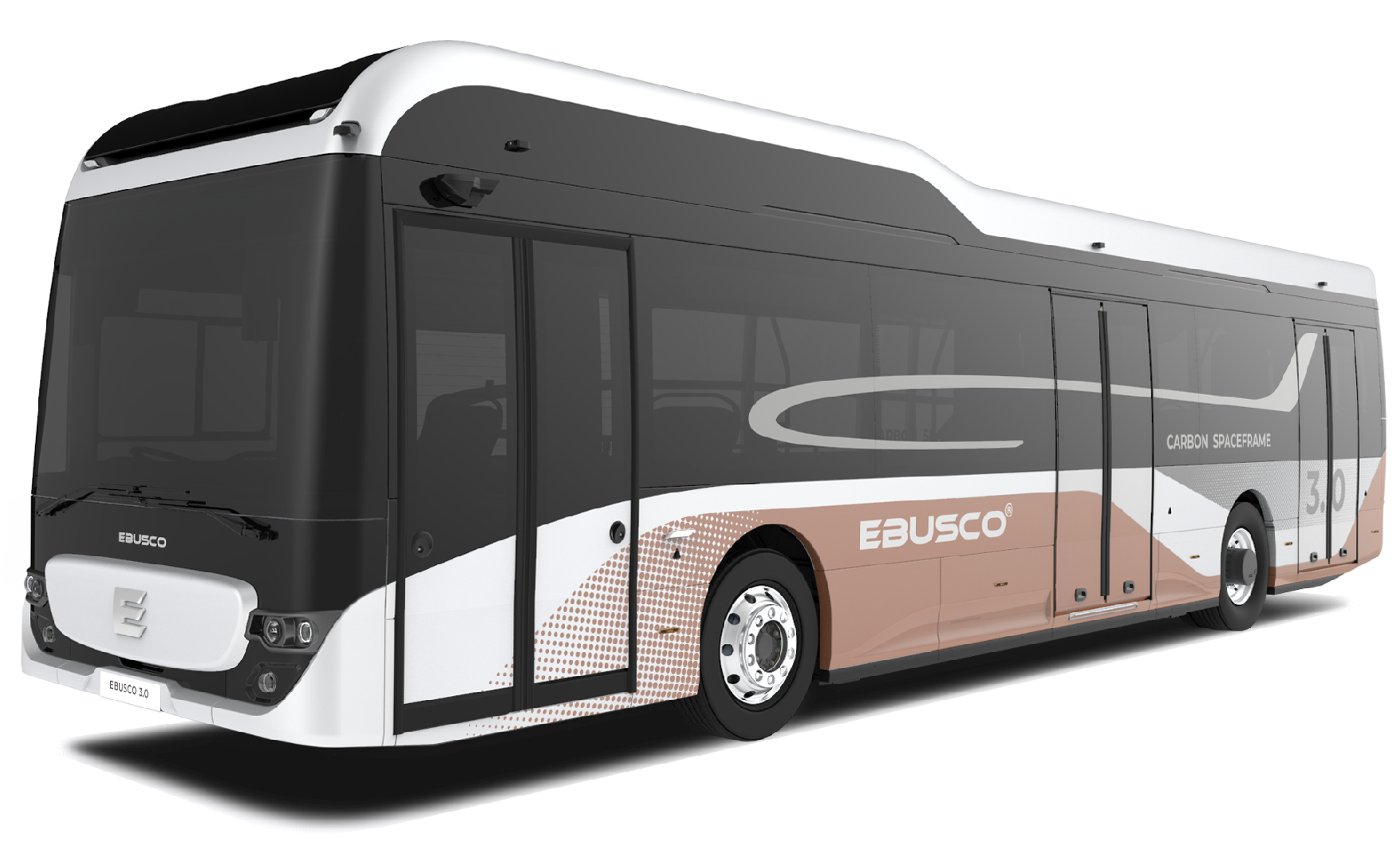

Ebusco
3.0
18M

  • up to 575 KM RANGE
  • 160 PAX
Download brochure

Specifications

Dimensions and Weights
Body type
Door configuration
Passenger capacity
Kerb weight
Length
Width
Height
Floor to ceiling height
Step-in height
Electric drive
Maximum range
Rated voltage
Maximum power
Maximum Torque
Batteries
Cell chemistry
Cell capacity and voltage
Pack capacity
Pack capacity - long range
Axles
Front Axle Capacity
Rear Axle Capacity
3th Axle Capacity
Rims and Tires
Rim
Tire

Ebusco
3.0 - 18M
18M

Dimensions and Weights
Body type
Low floor
+
Door configuration
3 / 4 doors
+
Passenger capacity
160 persons
+
Kerb weight
14500 kg
+
Length
18000 mm
+
Width
2550 mm
+
Height
3200 mm
+
Floor to ceiling height
2350 mm
+
Step-in height
340 mm
+
3.0 - 18M
Maximum range
up to 575 km
+
Rated voltage
AC 3ф 400V
+
Maximum power
2x125 kW
+
Maximum Torque
22000 Nm
+
3.0 - 18M
Cell chemistry
LFP (inherent fireproof battery)
+
Cell capacity and voltage
105 Ah, 3.2 V
+
Pack capacity
>350 kWh
+
Pack capacity - long range version
>500 kWh
+
3.0 - 18M
Front Axle Capacity
8200 kg
+
Rear Axle Capacity
10350 kg
+
3th Axle Capacity
10350 kg
+
3.0 - 18M
Rim
+
Tire
+
